51 11 156 Removing And Installing Front Bumper Trim (M3/Lightweight Design)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

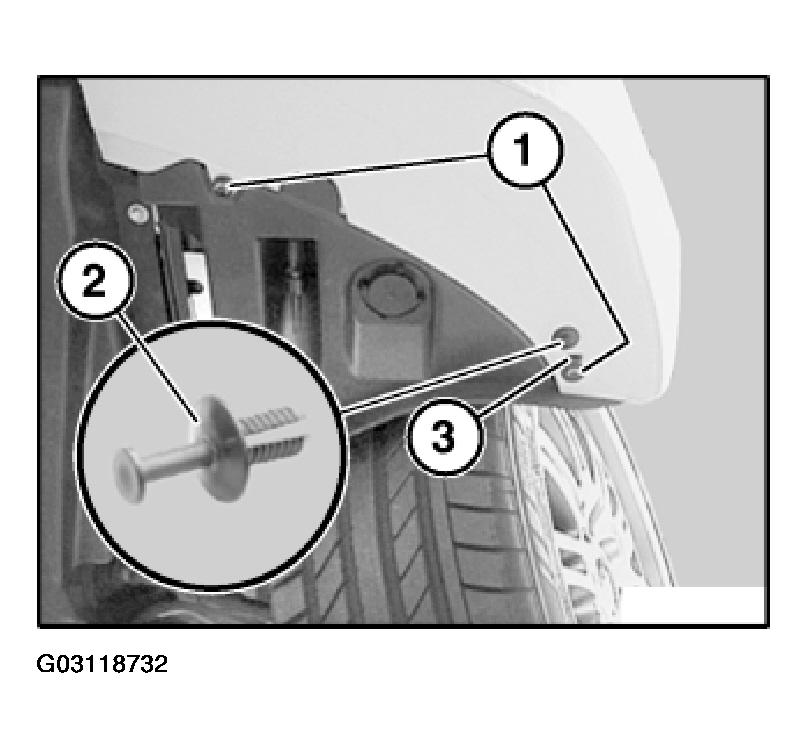

Release screws (1) and expansion rivet (2) on left and right.
NOTE:
Lever out catch (3) for removal.

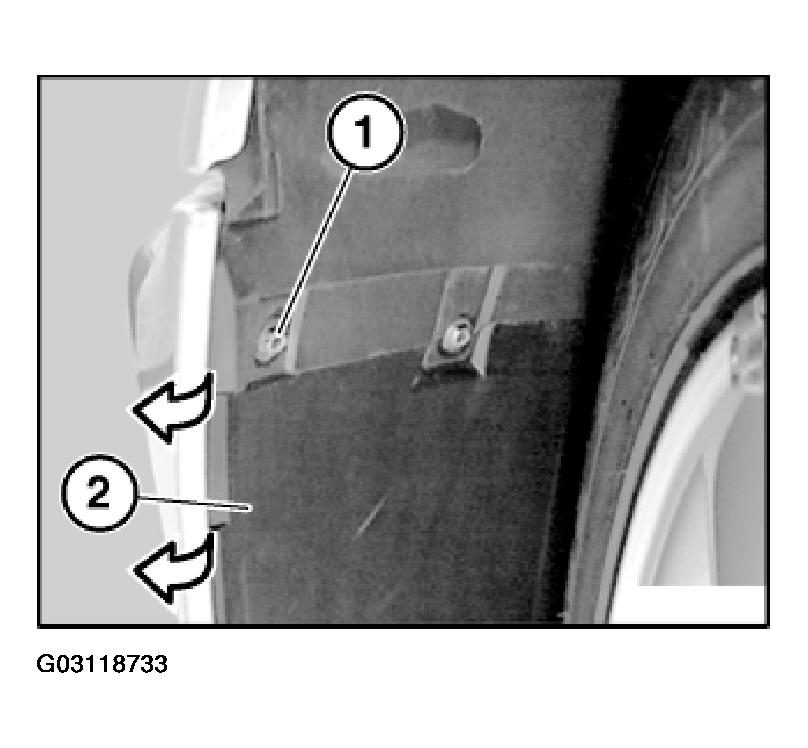

Release screws (1) on left and right.
Lift out side wheel arch liner (2) on left and right.

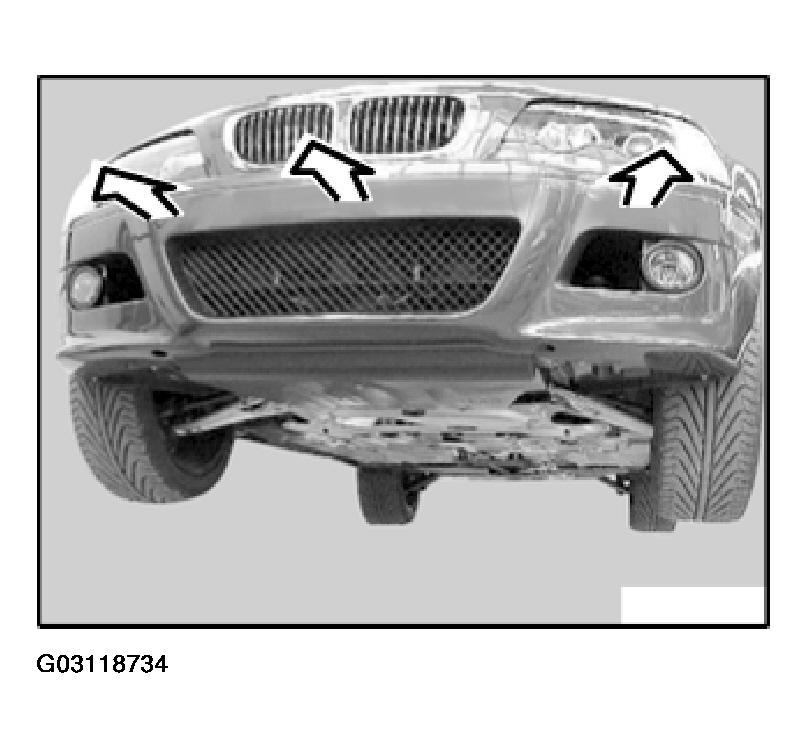

Unclip bumper straight to front (plug connection).

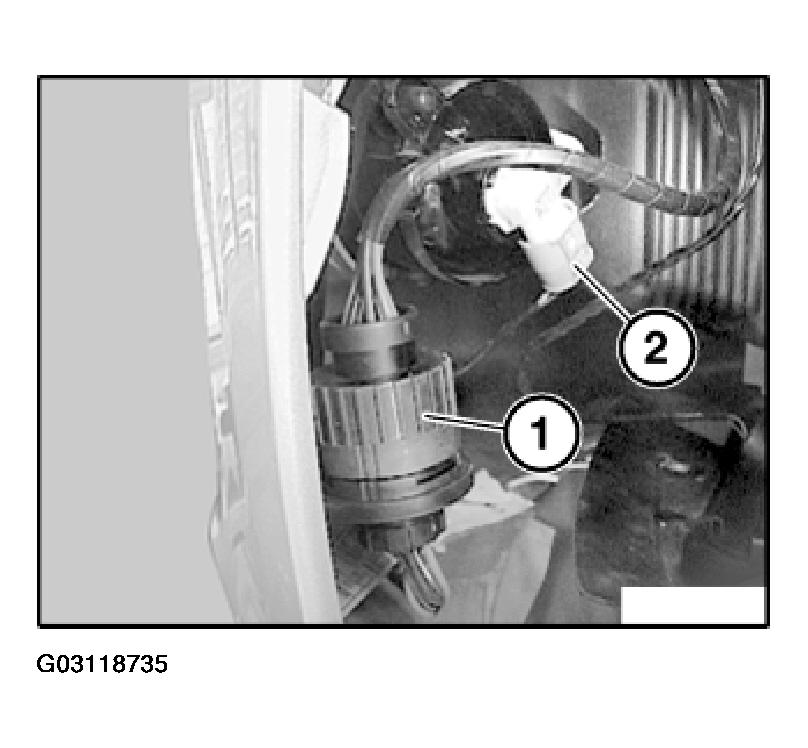

Disconnect left plug connection (1) and unclip from bumper.
Disconnect left and right plug connections (2).
Remove bumper.
