51 11 ... Checking Shock Absorber (Impact Absorber) For Front Bumper

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove shock absorber (impact absorber) at front. Refer to 51 11 794 REPLACING A SHOCK ABSORBER (IMPACT ABSORBER) FOR FRONT BUMPER .

NOTE: The impact absorber shown in the illustration is for viewing purposes only and may differ from the removed impact absorber.

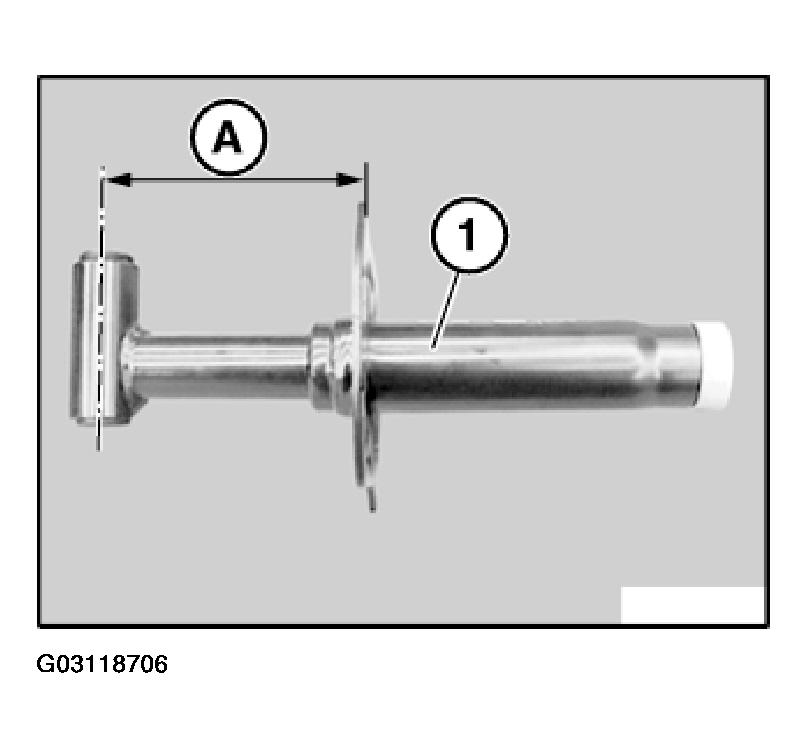

Fig 1: Identifying Impact Absorber Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Check dimension (A). Refer to BODY EQUIPMENT - TECHNICAL DATA - 325I, 325CI .

Dimension (A) is measured from center of pin boss up to mounting face for body (without gasket).

Replace impact absorber (1) if measurement drops below dimension (A).
