51 31 200 Removing And Installing Rear Window

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When gluing the rear window, glues for cold and hot processing are permitted. Cover rear side panels with protective covers. Removing and installing both trim pieces for rear roof pillar, refer to REMOVING AND INSTALLING/REPLACING TRIM PANEL FOR LEFT OR RIGHT REAR ROOF PILLAR (C-PILLAR) .

Cold Processing:

Comply with instructions on gluing windows, refer to REMOVING WINDSCREEN WITH "ROLL OUT 2000" .

Warm Processing:

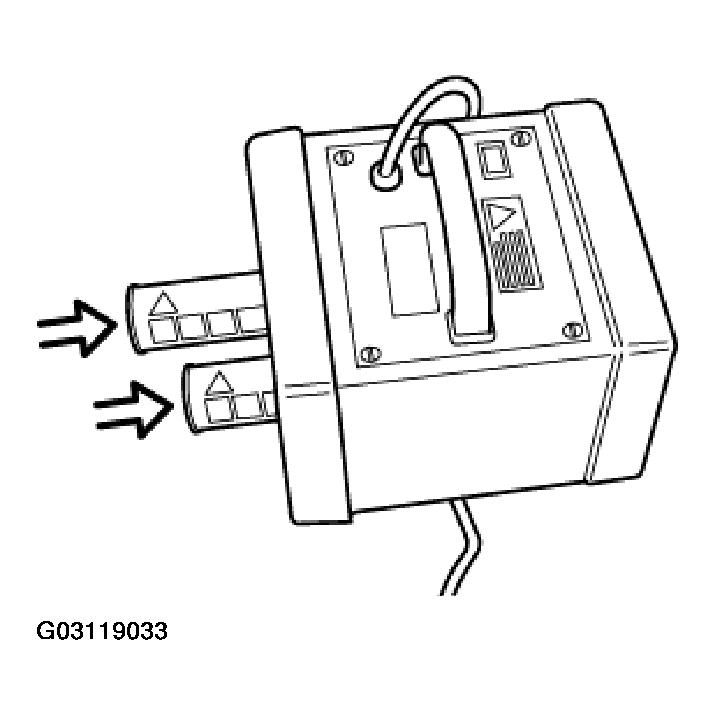

Open rear end of aluminum membrane in cartridge before installing in cartridge oven.

Heat glue cartridges to 80° C for one hour in oven.

Comply with instructions on gluing windows, refer to REMOVING WINDSCREEN WITH "ROLL OUT 2000"

Fig 1: Identifying Warm Processing

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect right plug connection (1) (wave trap).

Fig 2: Disconnecting Right Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

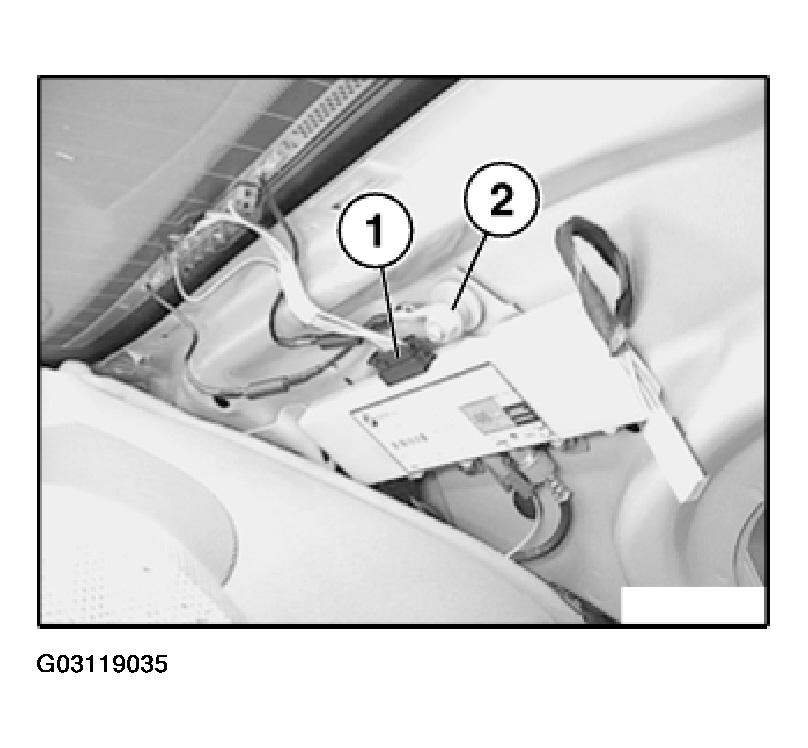

Disconnect plug connection (1), release nut (2) and secure leads to rear window with adhesive tape.

Fig 3: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

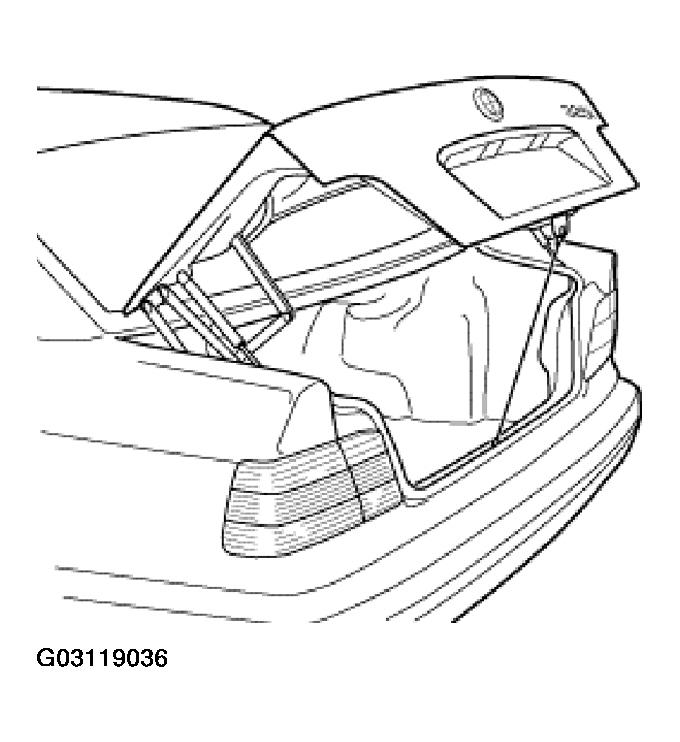

Raise trunk lid by about 65 cm and hold in this position (e.g. attach welding wire with two hooks between lock and lockpin).

Fig 4: Securing Trunk Lid

Courtesy of BMW OF NORTH AMERICA, INC.

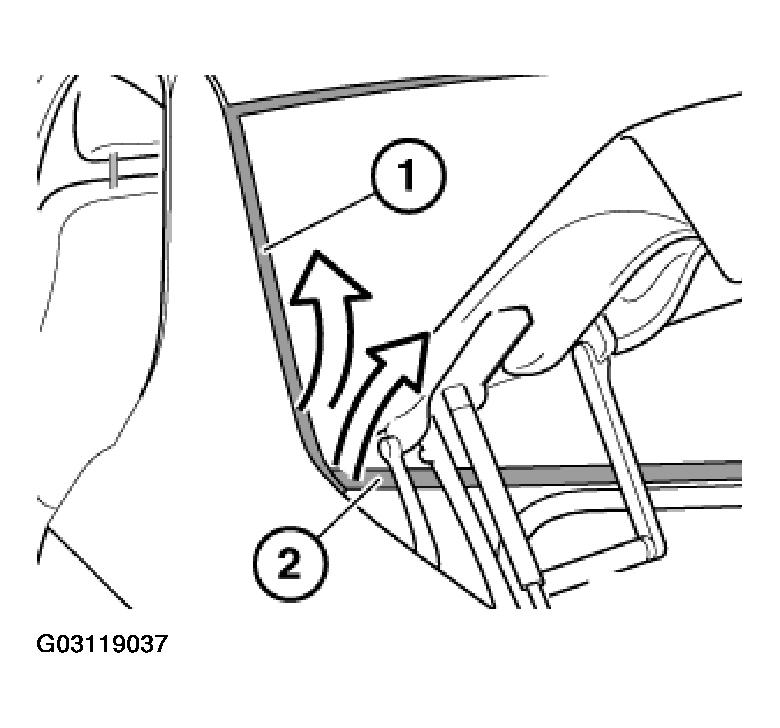

Remove seals (1).

Fig 5: Removing Seals

Courtesy of BMW OF NORTH AMERICA, INC.

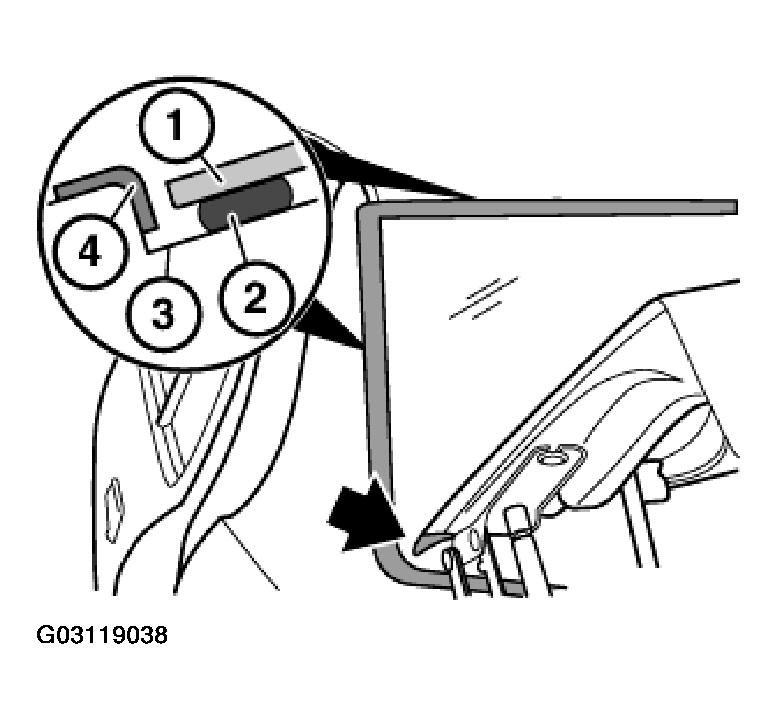

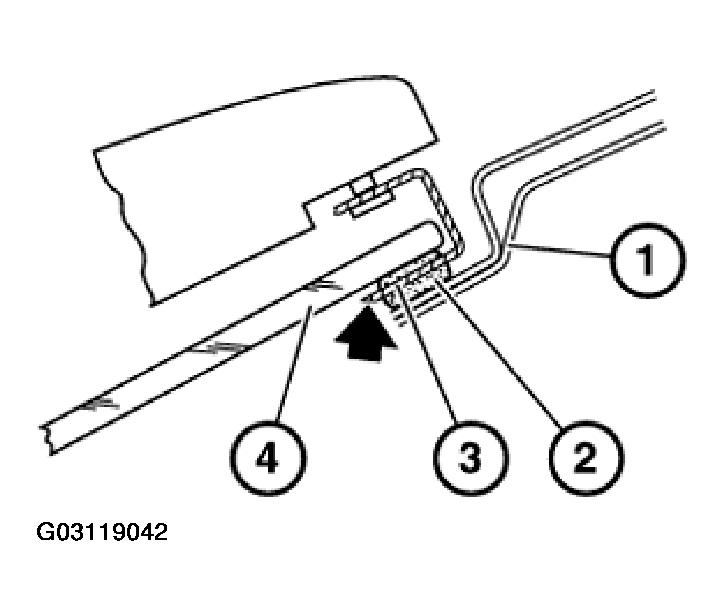

Mask edges of trunk lid and all round body with fabric adhesive tape (e.g. Tesa).

Rear window.
Glue bead.
Body opening.
Fabric adhesive tape.

Fig 6: View Of Fabric Adhesive Tape On Rear Window
Courtesy of BMW OF NORTH AMERICA, INC.

Fit knife (24 mm blade length) to the tool.

NOTE: If necessary, resharpen knife with machine running.

Fig 7: Identifying Knife

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully insert knife between body and top center of rear window.

Fig 8: Inserting Knife Between Body And Top Center Of Rear Window

Courtesy of BMW OF NORTH AMERICA, INC.

Guide web of knife parallel to rear window.

Fig 9: Aligning Knife Parallel To Rear Window

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: When reusing the rear window: Avoid damaging lines for rear window heating/antenna. When cutting through the glue bead beside the trunk lid, it must be opened for a short period by a 2nd person (risk of damage).

Cut through glue bead all around as close as possible to the rear window glass.

Body opening.
Glue bead.
Knife.
Rear window.

Fig 10: View Of Knife Cutting Glue Bead
Courtesy of BMW OF NORTH AMERICA, INC.

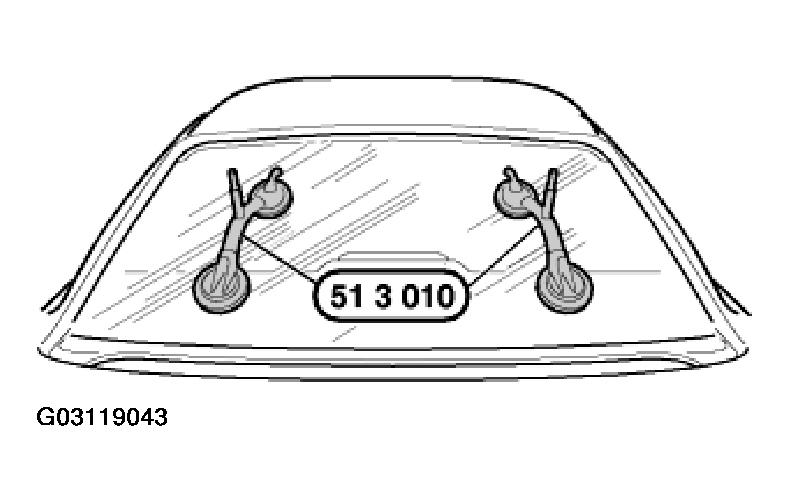

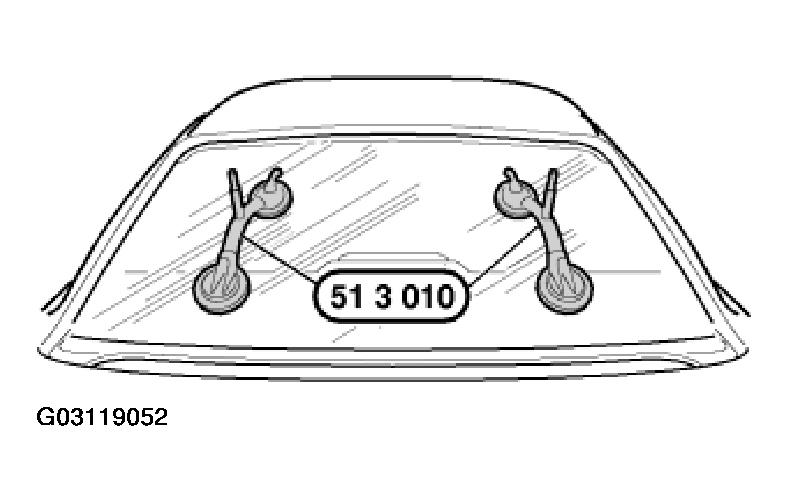

Lift out rear window using special tool 51 3 010.

Fig 11: Lifting Out Rear Window With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Cut off old glue in body opening but for a thickness of approx. 0.5 mm.

Cut off old glue carefully with an universal knife (sharp as a razor blade) to avoid damaging the paint finish in body opening.

Pull off adhesive tapes all round.

Fig 12: Cutting Old Glue Off Body Opening

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: To provide long-term corrosion inhibition, damage to paintwork (scratches and large areas of damage) should always be touched up, refer to REMOVING WINDSCREEN WITH "ROLL OUT 2000" .

When reusing the rear window:

Remove glue residue on windshield with a scalpel (1) for heavy-duty applications to approx. 0.5 mm.

Fig 13: Identifying Scalpel

Courtesy of BMW OF NORTH AMERICA, INC.

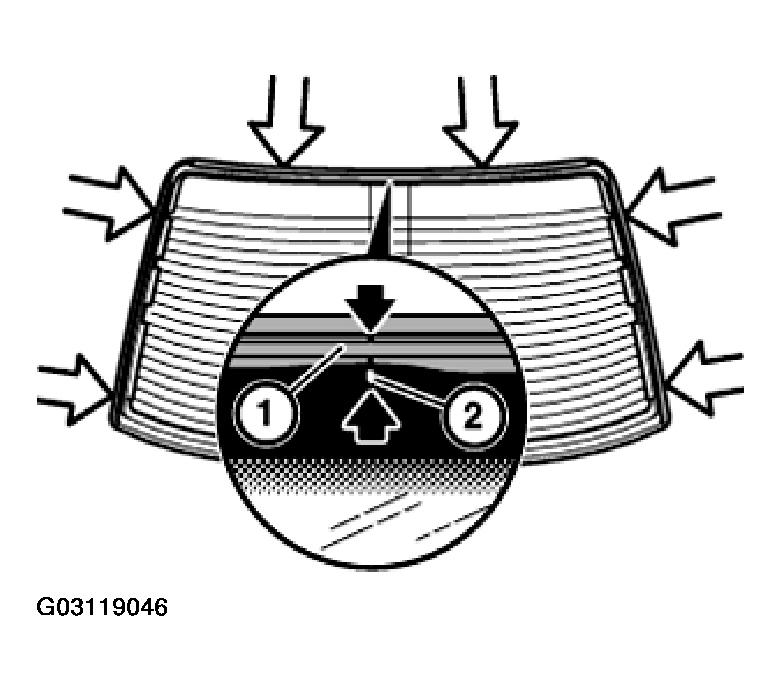

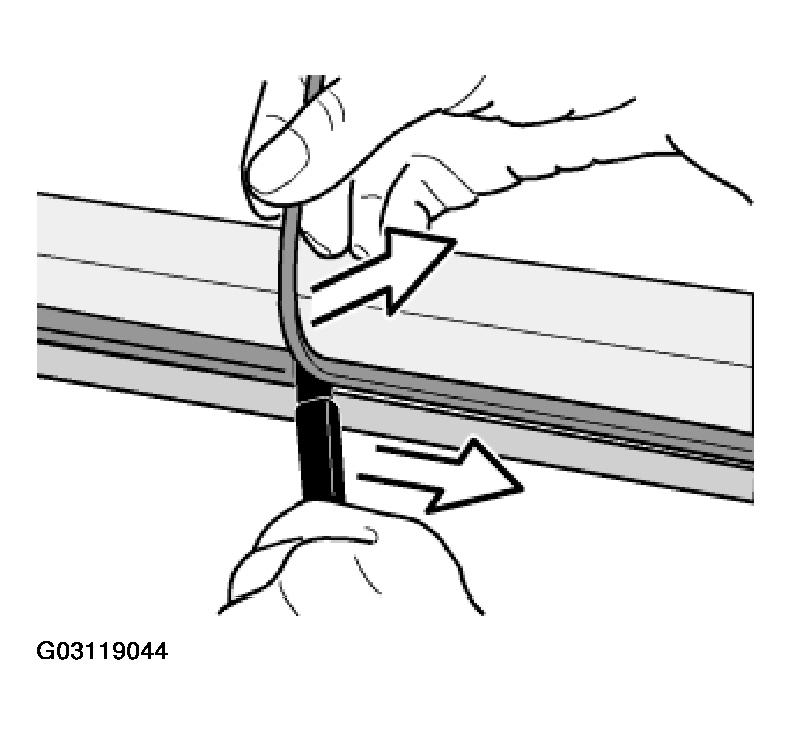

Fit seal (1) at top in center of rear window and press downwards.

NOTE: Sealing strip (1) and rear window are marked in center (2).

Fig 14: Identifying Center Of Sealing Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Secure cable (1) (rear window heating/antenna) with adhesive tape.

Treat rear window around glued area (A) with materials approved by BMW (repair kit), refer to REMOVING WINDSCREEN WITH "ROLL OUT 2000" .

Fig 15: Identifying Glued Area (A)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Note ventilation time!

Distance (A) from seal.

(A) = 15_-2 mm (top/side).

(A) = 20_-2 mm (bottom).

CAUTION: The basic filler must have hardened! Mask headlining on roof connection with paintwork masking tape.

Treat body in glued area with materials approved by BMW (repair kit), refer to REMOVING WINDSCREEN WITH "ROLL OUT 2000" .

NOTE: Note ventilation time!

CAUTION: Before setting new spacer buffers, remove remnants of old spacer buffers completely (broken rear window). Fit two spacer buffers at a distance (200 mm) from center of cowl panel.

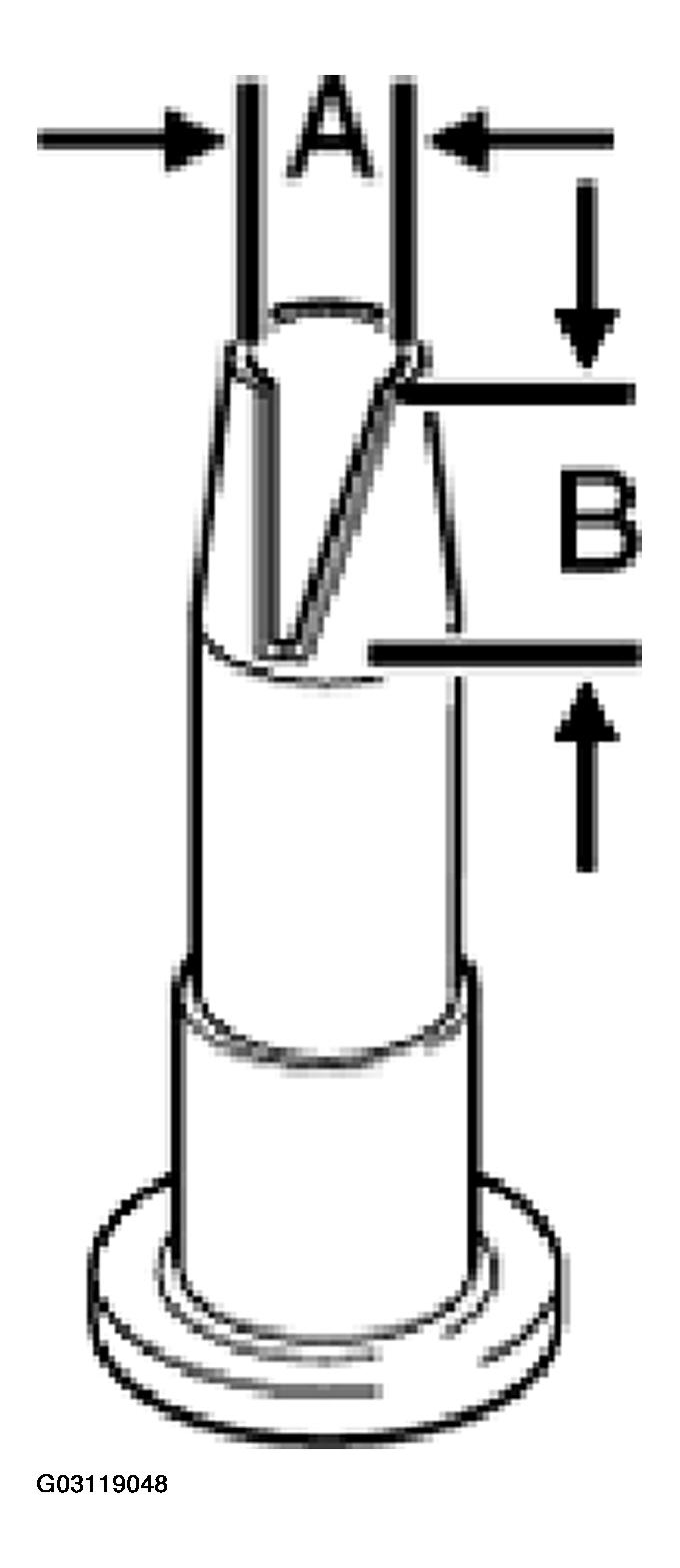

Cut nozzle to size.

7 mm.
12⁺¹ mm.

Fig 16: Identifying Nozzle Dimensions
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To apply uniform glue bead, use cartridge pistol, operated with compressed air or electric power.

Note expiry date of glue!

If applicable, produce a sample bead before gluing.

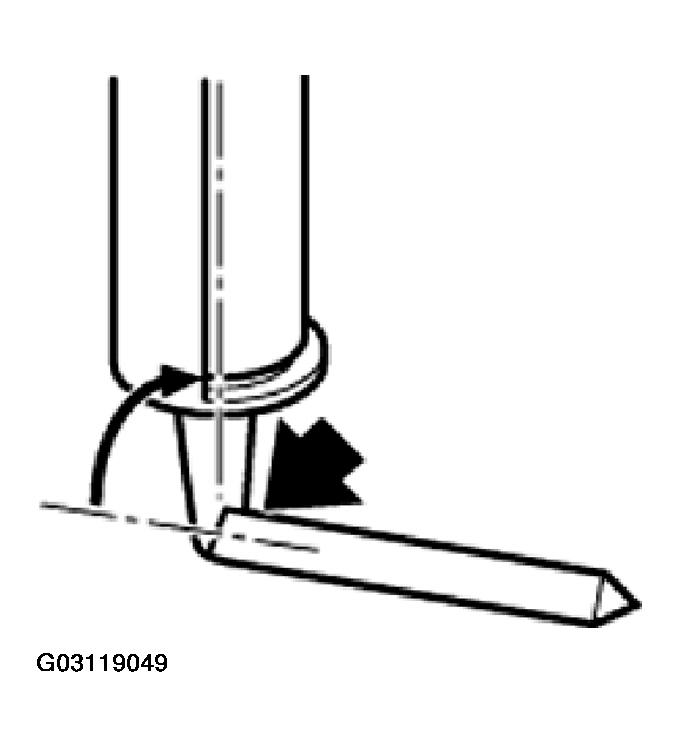

Cartridge must be arranged vertically against rear window.

Fig 17: Applying Uniform Glue Bead

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Version with rear window antenna: No glue must come into contact with the connection contacts of the rear window heating/antenna.

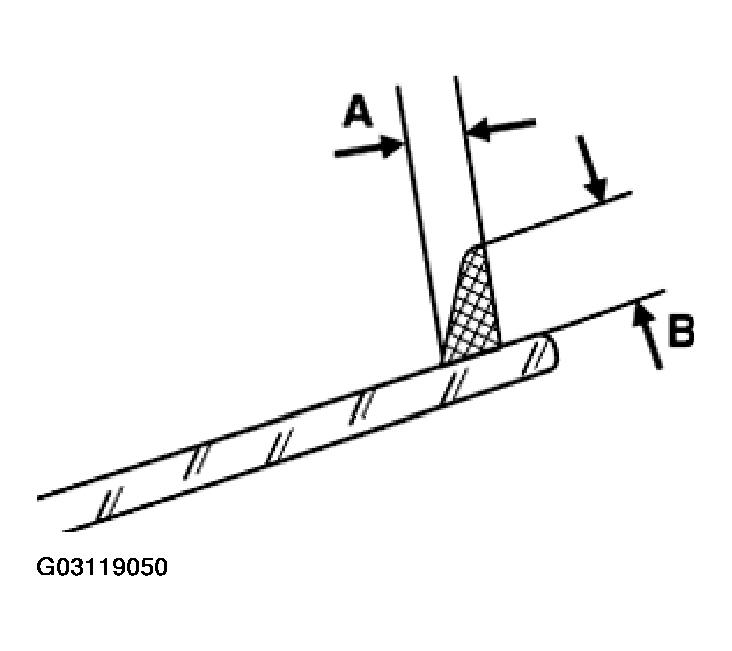

Fig 18: Identifying Shape Of Glue Bead

Courtesy of BMW OF NORTH AMERICA, INC.

Shape of glue bead:

7 mm.
12⁺¹ mm.

CAUTION: Apply glue bead quickly and insert window. Skin formation time of glue, maximum 10 minutes.

Maintain distance (A), (B) and (C) between glue bead and seal.

2 mm.
2 mm.
8 mm.

Fig 19: View Of Distance Between Glue Bead And Seal
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Adhesive area for plastic adhesive tapes must be free of grease and dust.

Attach two yellow plastic adhesive tapes (Tesa) to roof at a distance (250 mm) from outer corners.

Length: 400 mm.

Width: 50 mm.

Fig 20: Installing Rear Window

Courtesy of BMW OF NORTH AMERICA, INC.

Install rear window carefully using special tool 51 3 010. The gasket must make uniform contact all round (center). Press rear window upwards until gasket is at uniform distance from roof all round.

Secure rear window in this position at top with two yellow plastic adhesive tapes (Tesa).

Length: 400 mm.

Width: 50 mm.

Distance from outer corners approx. 100 mm.

CAUTION: Remove dirt from residual glue with Sika-Entferner 208 before glue is hard. Do not press out rear window glass again for this purpose. Hardened glue can only be removed by machine.

Assemble car.

After the hardening time, remove adhesive tapes.

NOTE: Leaks are localized by spraying under the sealing lips or by using an ultrasonic leak tester and are sealed using an appropriate nozzle.
