51 31 021 Removing And Installing/Replacing Rubber Frame For Windshield (Top/Side)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Rubber frame is reinforced with an aluminum strip. Do not damage windshield when removing rubber frame.

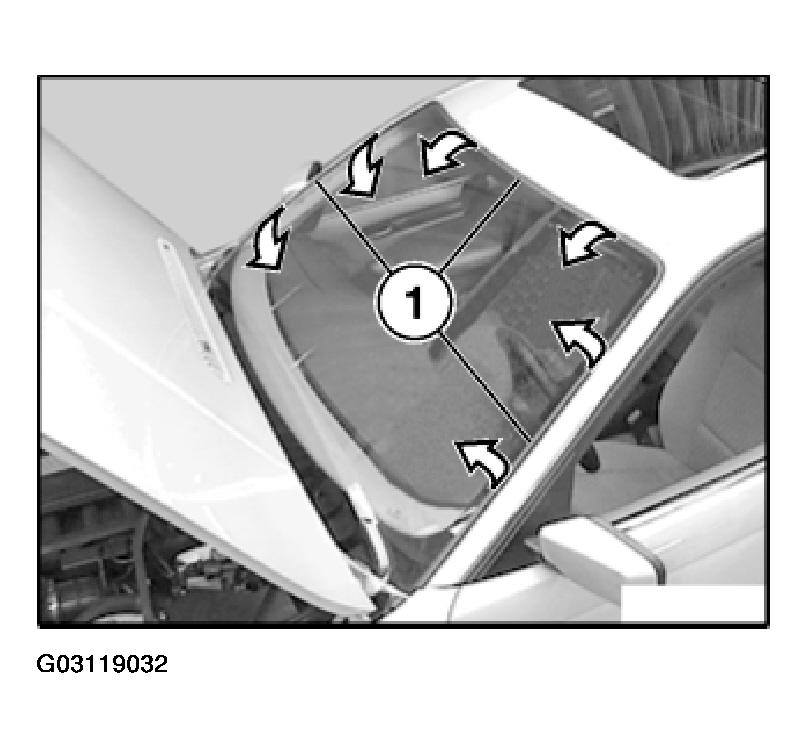

Carefully turn and remove rubber frame (1).
Installation:
- Cut tear-off lip of rubber frame.
To facilitate installation, apply soapy water to rubber frame and body cutout.
