18 12 030 Removing And Installing/Replacing Rear Muffler

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see Figure .

Special Tools Required:

31 2 220

WARNING: Scalding hazard! Only perform these tasks after exhaust system has cooled down.

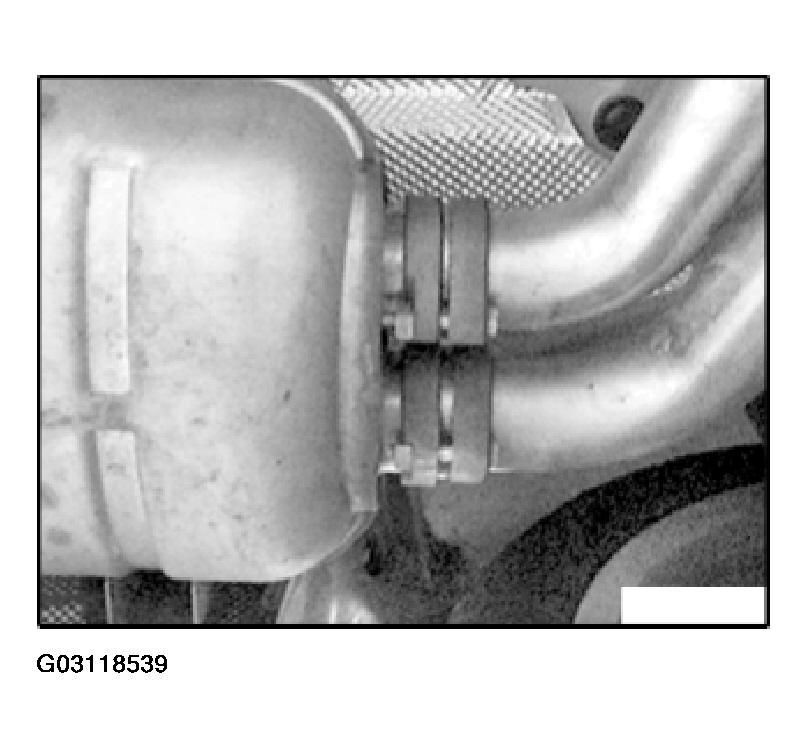

Release screw connection of flanges between rear muffler and intermediate pipes.

Installation:

Check seal, replace if necessary.

Fig 1: Removing Screw Connection Of Flanges

G03118539

Courtesy of BMW OF NORTH AMERICA, INC.

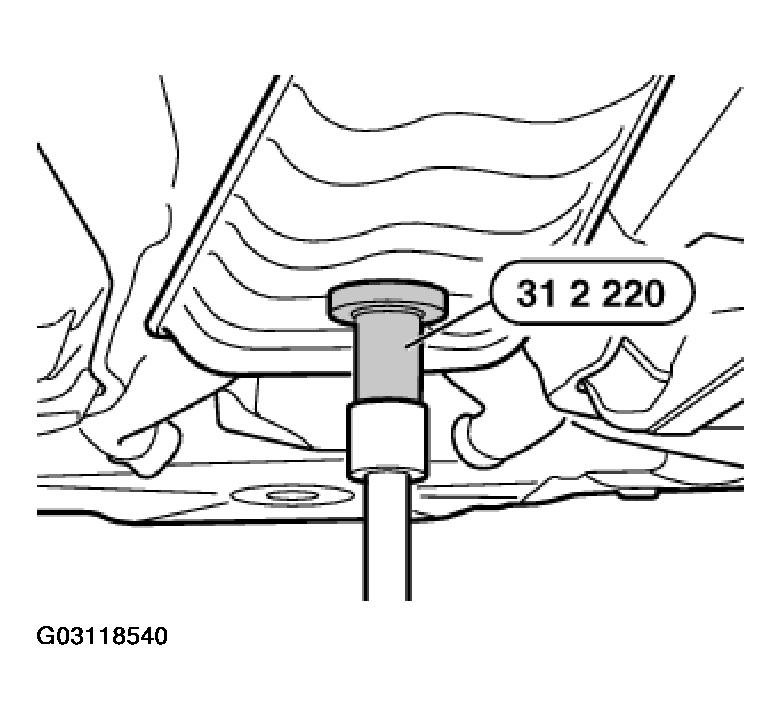

Support rear muffler with jack and special tool 31 2 220 and secure against falling out.

Fig 2: View Of Jack And Special Tool

G03118540

Courtesy of BMW OF NORTH AMERICA, INC.

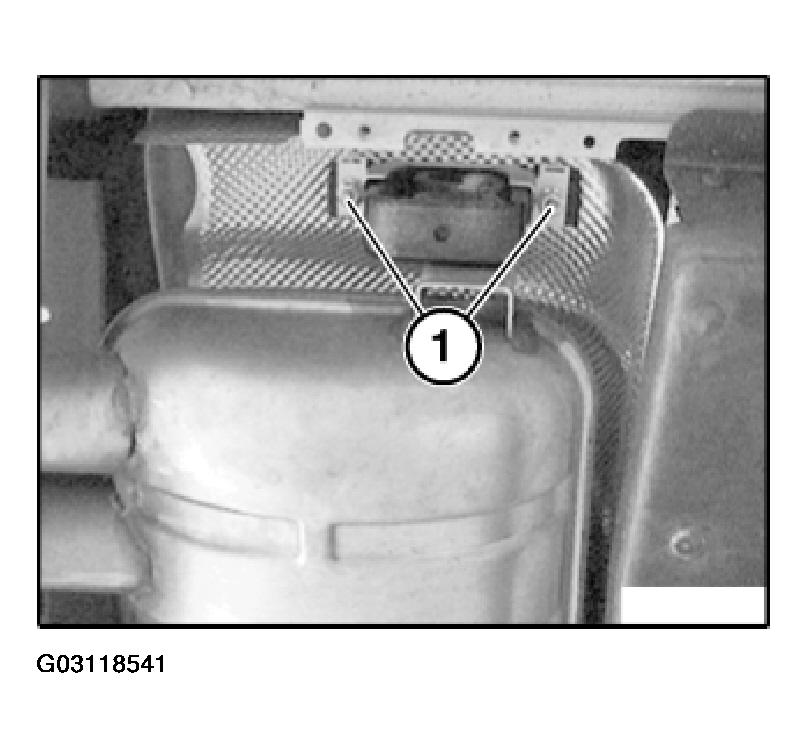

Release nuts (1) on right from rear muffler.

Fig 3: Locating Right Rear Muffler Retaining Nuts

G03118541

Courtesy of BMW OF NORTH AMERICA, INC.

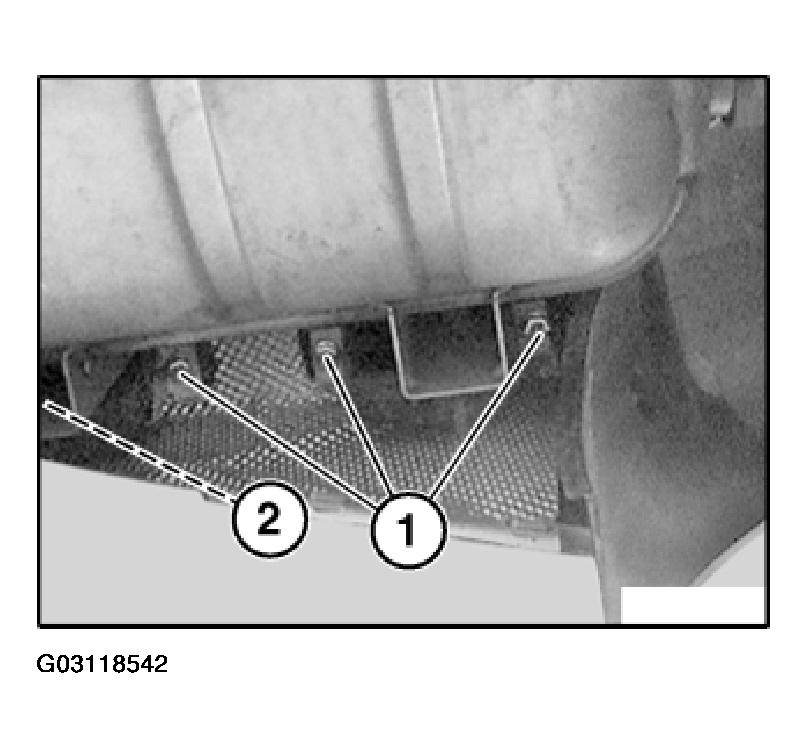

Release nuts (1) on left from rear muffler.

Nut (2) is concealed under rear apron.

Fig 4: Removing Left Rear Muffler Retaining Nuts

G03118542

Courtesy of BMW OF NORTH AMERICA, INC.

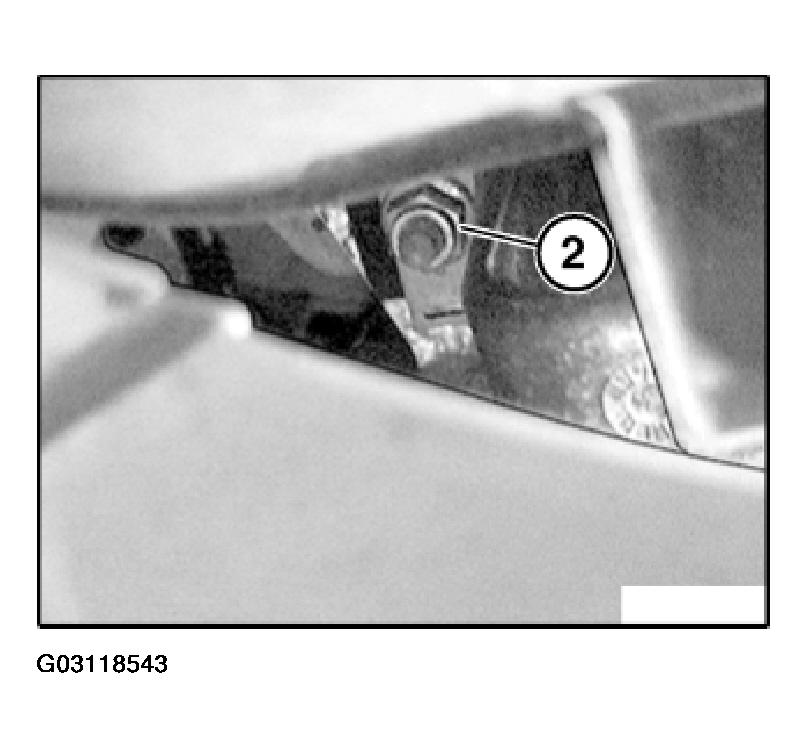

Carefully pull panel away and release nut (2).

Carefully lower rear muffler and remove.

Fig 5: Removing Lower Rear Muffler Nut

G03118543

Courtesy of BMW OF NORTH AMERICA, INC.

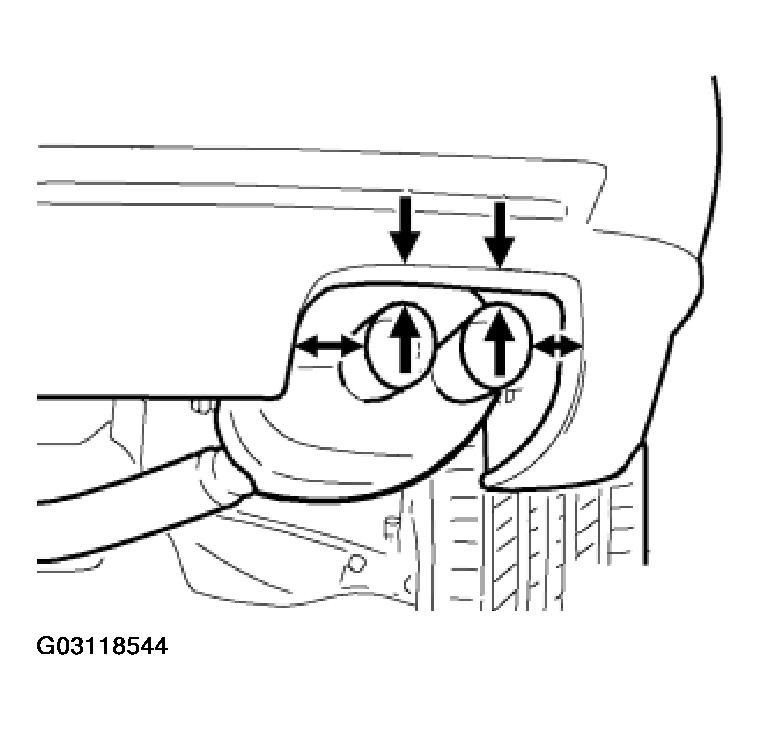

Installation:

Align tailpipes on left and right of rear muffler to rear apron.

Fig 6: Aligning Tailpipes

G03118544

Courtesy of BMW OF NORTH AMERICA, INC.
