17 22 030 Removing And Installing/Replacing Oil Line For Oil Cooler (S54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of scalding! Only perform this work after engine has cooled down. Remove assembly underguard at front.

NOTE: Check engine oil level after completing tasks.

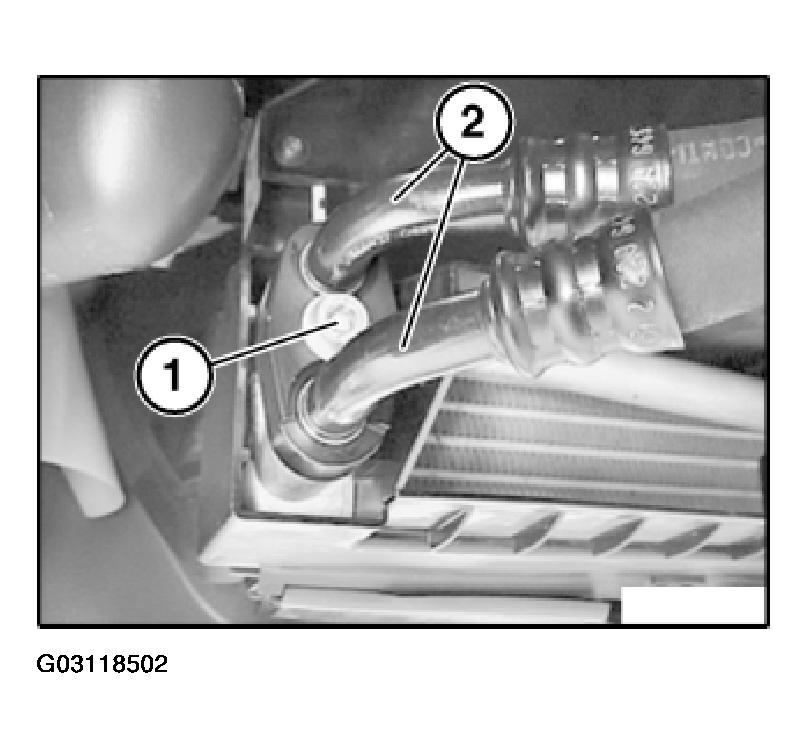

Fig 1: Locating Screw And Oil Cooler Line From Oil Cooler

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Detach oil cooler line (2) from oil cooler.

Catch and dispose of escaping oil.

Installation:

Use new sealing rings.

Fig 2: View Of Plug From Control Unit For Xenon Light And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Detach plug (1) from control unit for xenon light.

Remove cover (2).

Release screws (1, 2, 3).

Remove control unit for left xenon light.

Remove air cleaner. Refer to 13 71 000 REMOVING AND INSTALLING INTAKE FILTER HOUSING (S54) .

Fig 3: Identifying Screws And Control Unit For Left Xenon Light

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: When working on the oil, coolant or fuel circuit, you must protect the alternator against contamination. Cover alternator with suitable materials. Failure to comply with this procedure may result in an alternator malfunction.

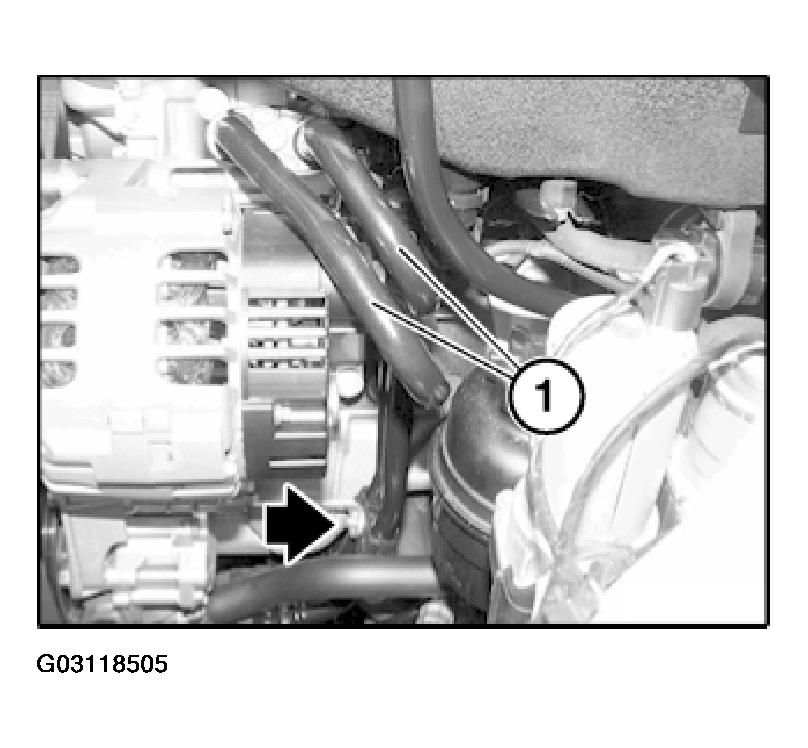

Fig 4: Locating Oil Cooler Line On Oil Filter Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Remove holder from oil cooler line (1).

Release oil cooler line (1) on oil filter housing.

Catch and dispose of escaping oil.
