17 00 010 Checking For Coolant Leaks Between Cooling System And Combustion Chamber

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Checking for leaks while the engine is running creates the risk of engine overheating. Observe coolant temperature.

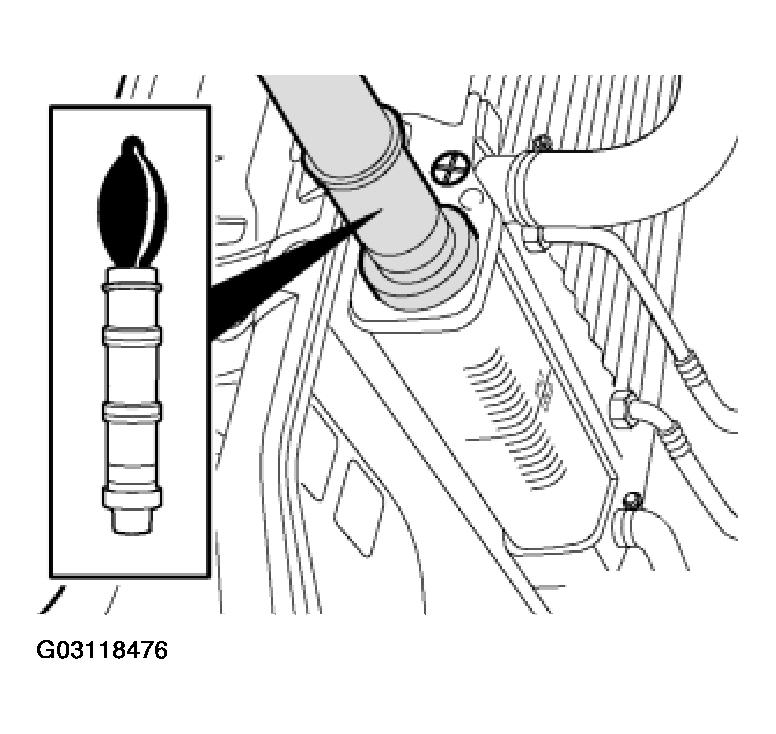

Fig 1: Checking For Leaks With CO Leak Tester
G03118476Courtesy of BMW OF NORTH AMERICA, INC.

Check for leaks with CO leak tester.

Follow equipment manufacturer's operating instructions.
