13 54 250 Replacing Intake Hose (S54)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

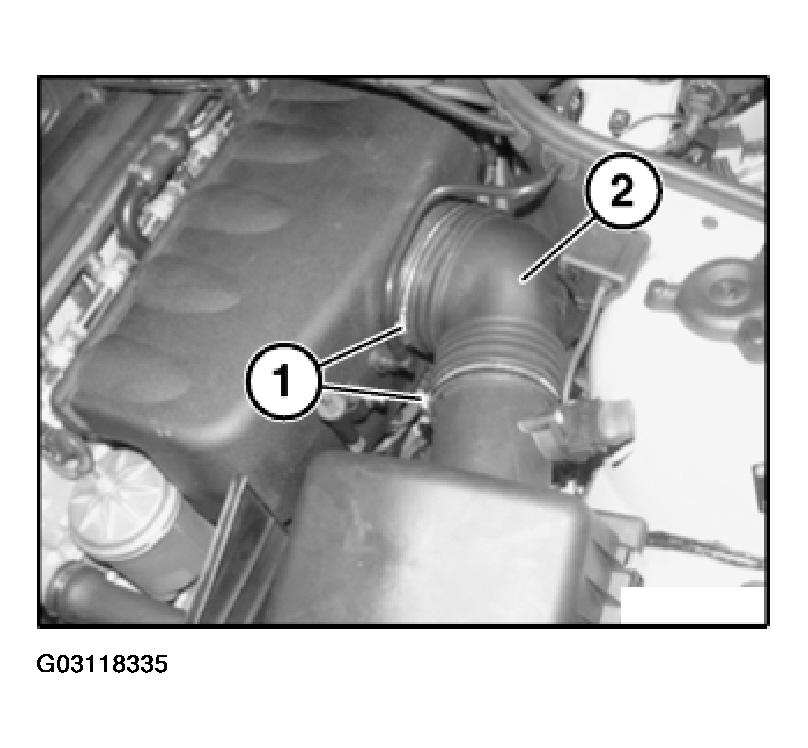

Release hose clamps (1).
Detach intake hose (2) first from intake filter housing and then from intake air manifold.
Installation:
Check sealing rings for damage, replace if necessary.
Check that suction pipe is correctly seated.
