13 63 590 Replacing Fuel Pump Relay

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Turn off ignition.

Remove glovebox on right. Refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVEBOX .

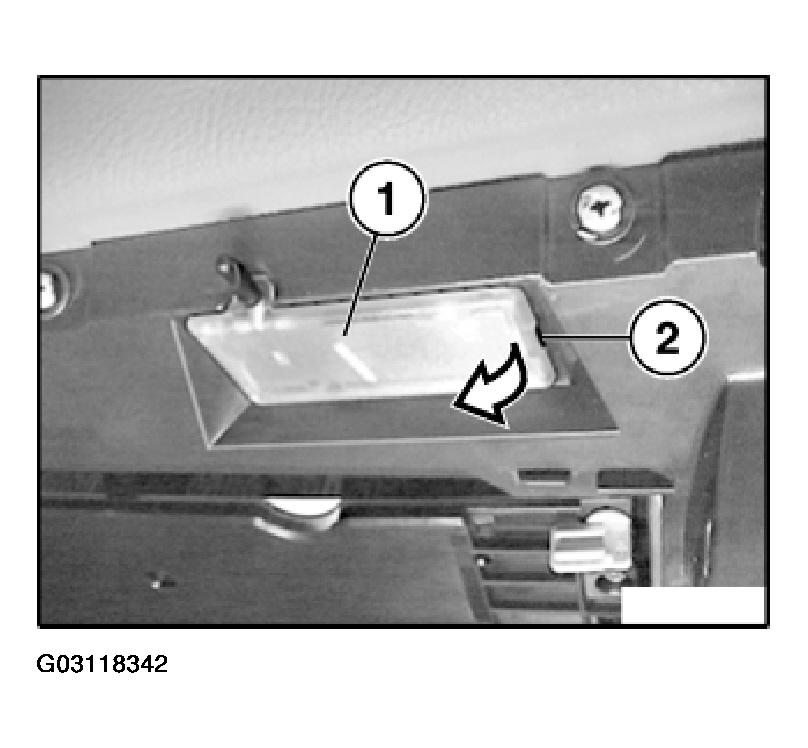

Unclip glovebox light (1) in opening (2).

Disconnect plug connection of glovebox light and remove light.

Fig 1: Removing Glovebox Light

G03118342

Courtesy of BMW OF NORTH AMERICA, INC.

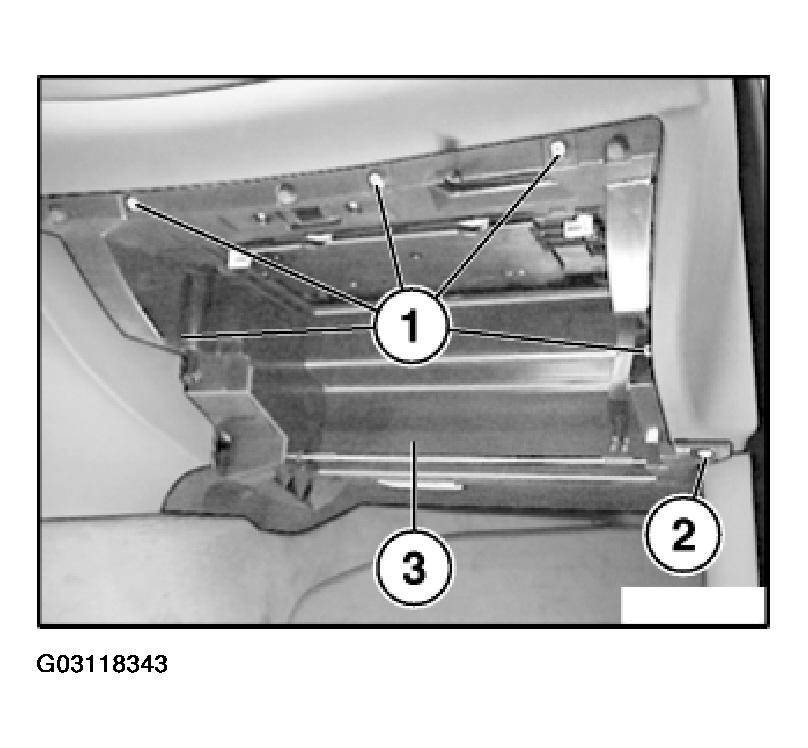

Release screws (1) and pin (2).

Remove insert (3) downwards.

Fig 2: Removing Screws And Pin

G03118343

Courtesy of BMW OF NORTH AMERICA, INC.

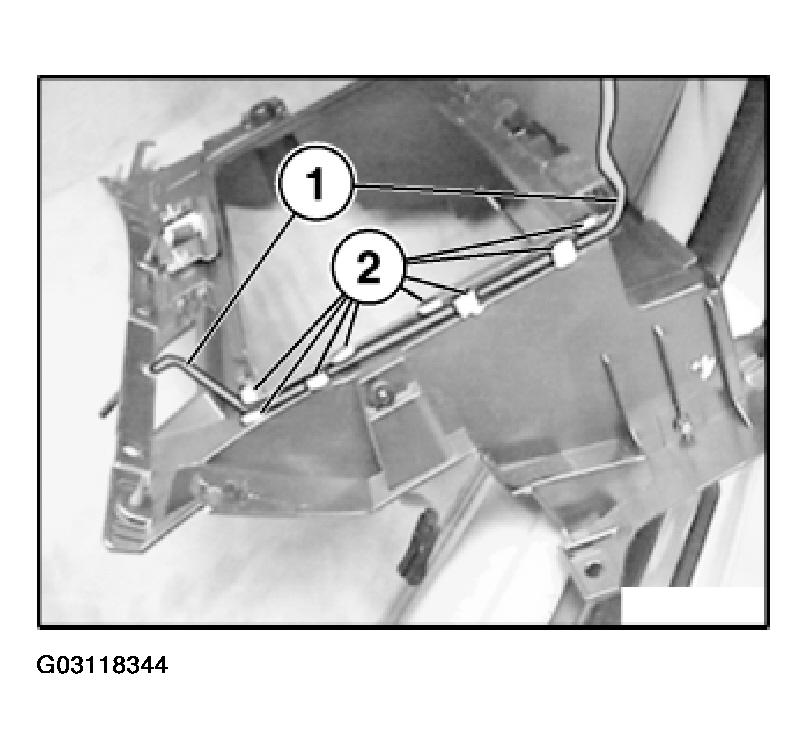

Feed out wire (1) for glovebox light from guides (2).

Fig 3: Locating Wire For Glovebox Light

G03118344

Courtesy of BMW OF NORTH AMERICA, INC.

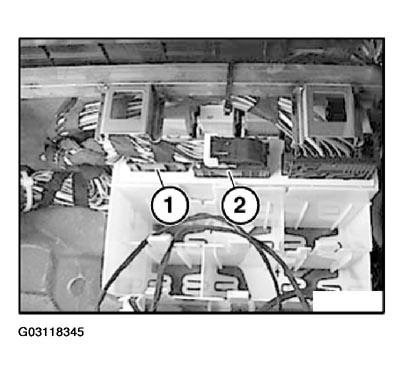

Disconnect plug connections (1 and 2) on general module.

Fig 4: Disconnecting Plug Connections On General Module

G03118345

Courtesy of BMW OF NORTH AMERICA, INC.

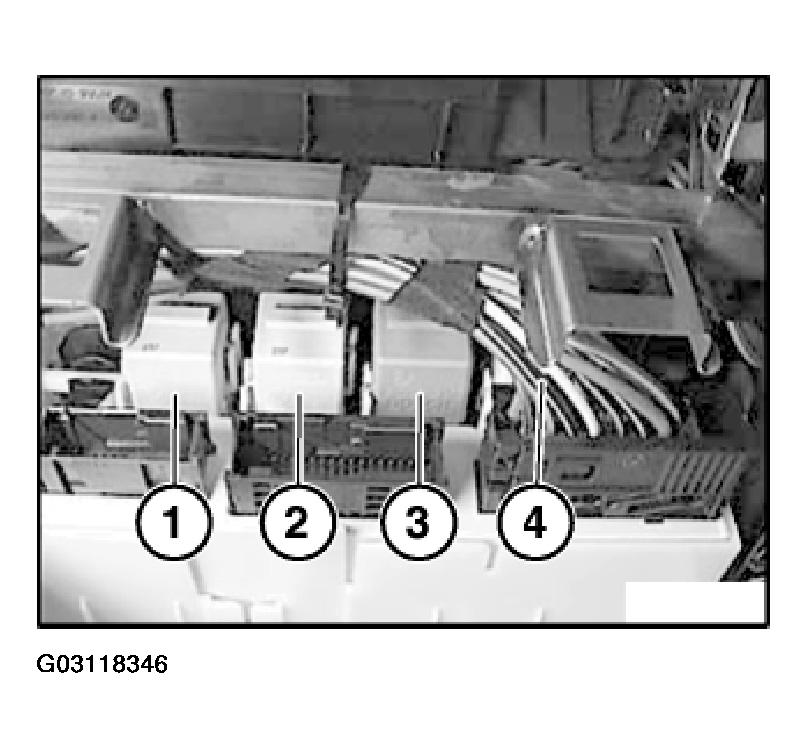

Pull fuel pump relay (1) out of pin base.

Fig 5: Pulling Fuel Pump Relay Out Of Pin Base

G03118346

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Interrogate fault memory of DME control unit. Check stored fault messages. Rectify faults. Then clear fault memory.

For additional instructions on troubleshooting, refer to DIS.
