13 41 500 Replacing Idle-Speed Control Valve (S54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Interrogate fault memory of DME control unit.

Turn off ignition.

Remove intake air manifold. Refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (S54) .

Release hose clamps (1) and detach hoses from idle-speed control valve (2).

Unlock plug (3) and detach from idle-speed control valve (2).

Release nuts.

Remove holder (4) together with idle-speed control valve (2).

Installation:

If necessary, install holder (4) with rubber damper on new idle-speed control valve.

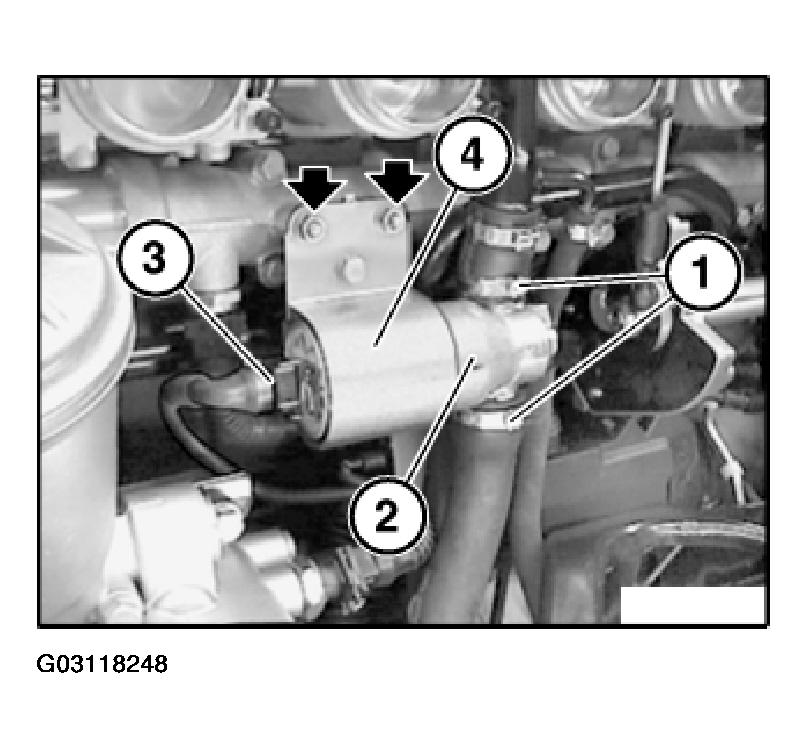

Fig 1: Locating Idle-Speed Control Valve And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Interrogate fault memory of DME control unit. Check stored fault messages. Rectify faults. Then clear fault memory.
