13 64 501 Removing And Installing/Replacing A Fuel Injector (S54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see FUEL SYSTEM - SPECIAL TOOLS - 3-SERIES (M54/E46) .

Special Tools Required:

12 1 120

Remove heater bulkhead. Refer to 51 71 080 REMOVING AND INSTALLING/REPLACING HEATER BULKHEAD .

Release screw.

Remove cable (1) from holder.

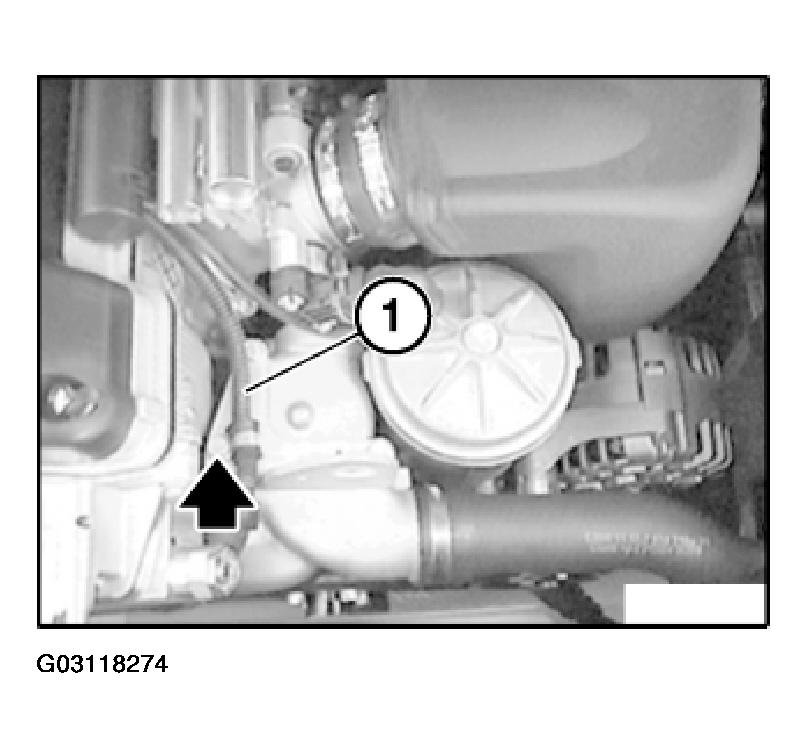

Fig 1: Removing Cable From Holder

G03118274

Courtesy of BMW OF NORTH AMERICA, INC.

Detach wiring harness (1) for fuel injector rail from holder (2).

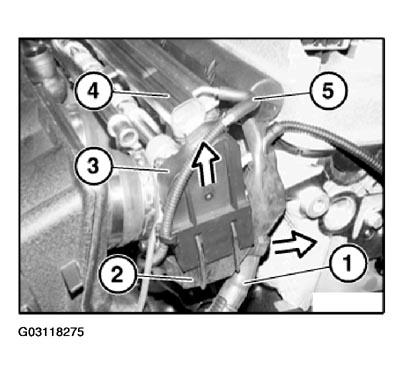

Fig 2: Removing Wiring Harness For Fuel Injector Rail From Holder

G03118275

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: The connector strip (1) may break if it is removed without special tool 12 1 120.

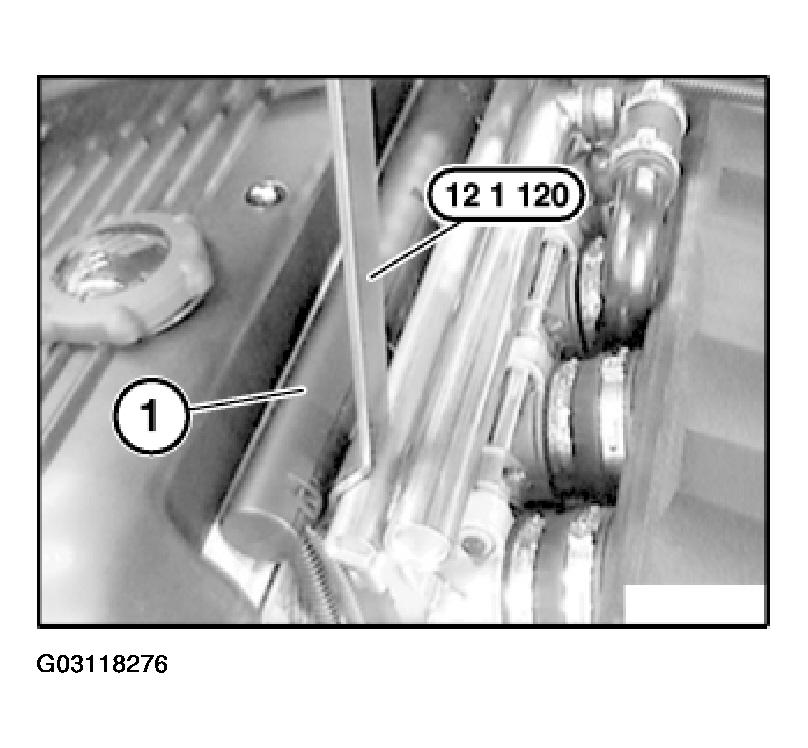

Fig 3: Identifying Connector Strip And Special Tool

G03118276

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector strip with special tool 12 1 120 in sequence 1 to 6.

Lay connector strip to one side.

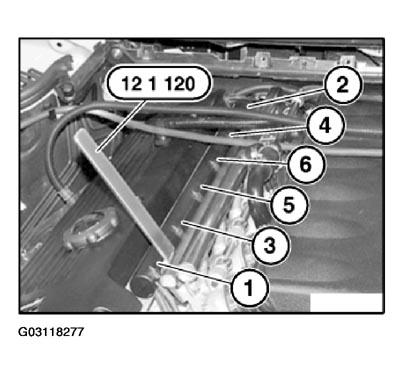

Fig 4: Connector Strip Tightening/Loosening Sequence

G03118277

Courtesy of BMW OF NORTH AMERICA, INC.

Detach retainer (1). Pull fuel line out of fuel injector rail.

Recycling:

Catch and dispose of escaping fuel.

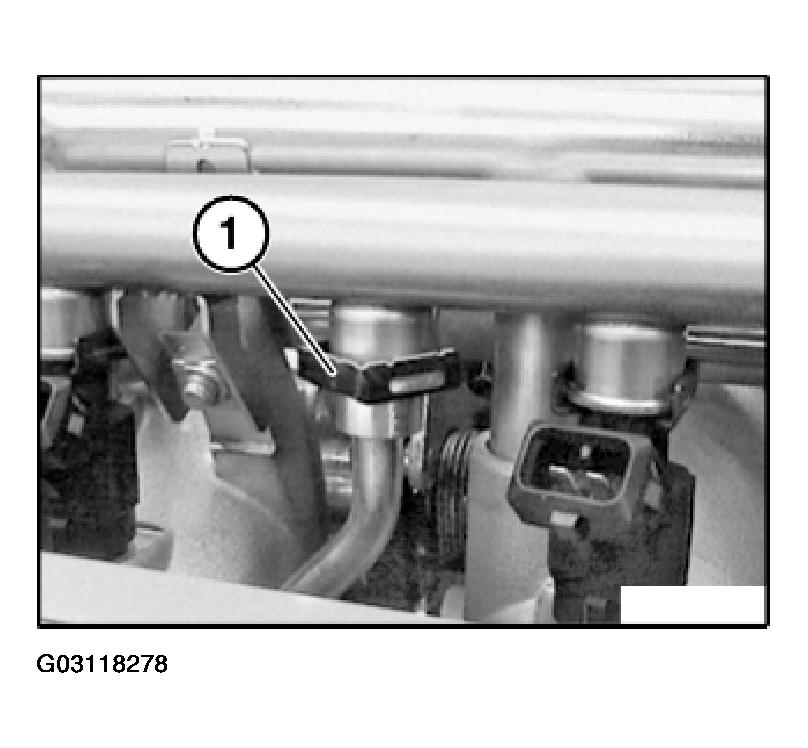

Fig 5: Pulling Fuel Line Out Of Fuel Injector Rail

G03118278

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw connection of fuel injector rail and air pipe on left and right.

Pull out fuel injector rail towards top.

Recycling:

Catch and dispose of escaping fuel.

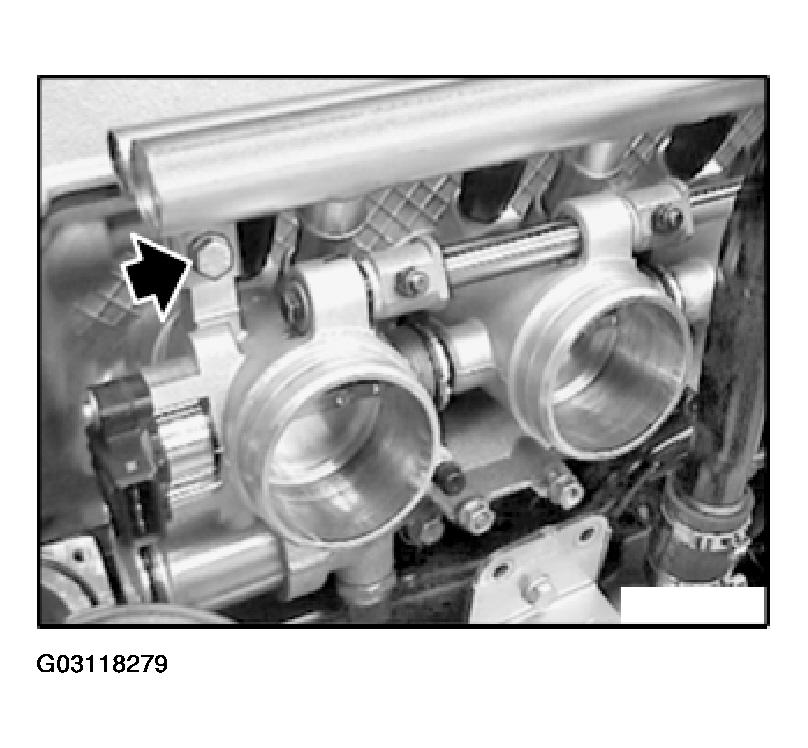

Fig 6: Removing Screw Connection Of Fuel Injector Rail

G03118279

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out retainers (1) and remove fuel injectors (2) from injection pipe.

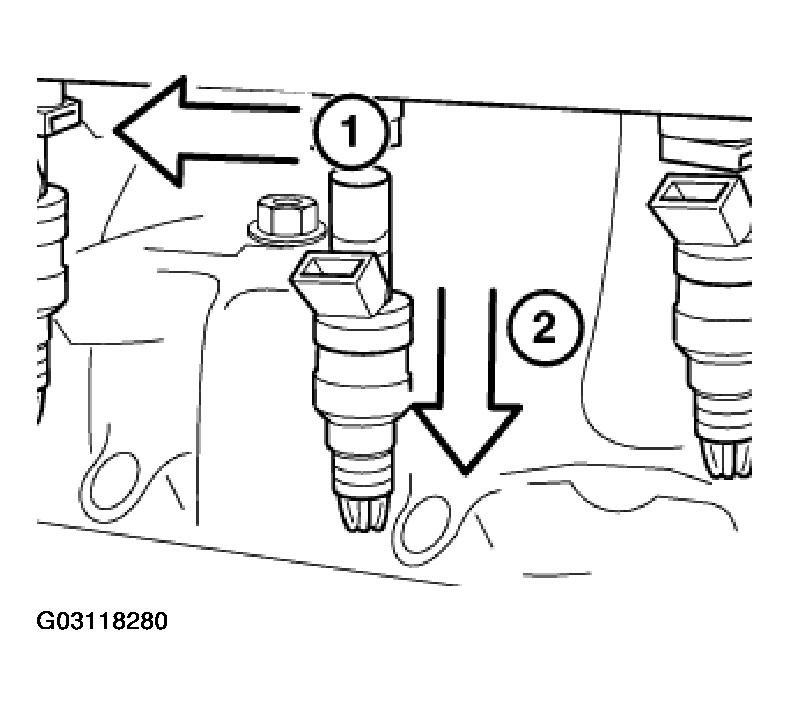

Fig 7: Removing Fuel Injectors From Injection Pipe

G03118280

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check O-rings, replace if necessary.

When fitting, coat all O-rings with lubricant SAE 90.

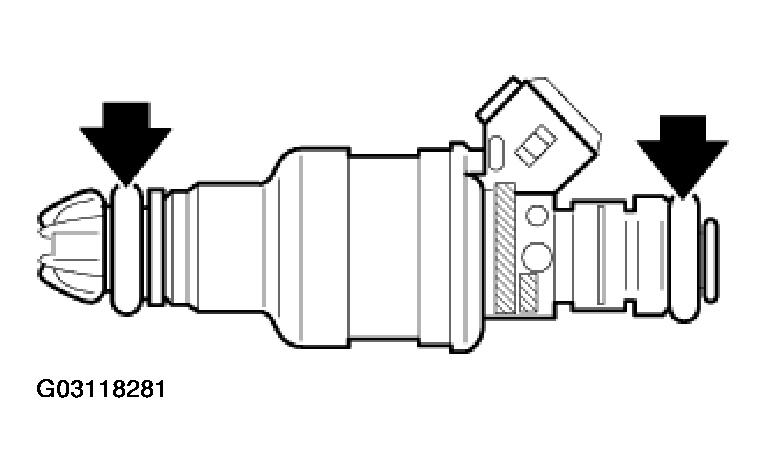

Fig 8: Locating O-Rings

G03118281

Courtesy of BMW OF NORTH AMERICA, INC.
