13 72 001 Replacing Air Cleaner Element (S54)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Release hose clamp (1).
Unlock plug (2) and detach from air-mass flow sensor.
Release clips (3).
Rotate upper section of intake filter housing (4) in direction of arrow and remove.
Installation:
Check seal between intake hose and intake air manifold for damage, replace if necessary.
Installation:

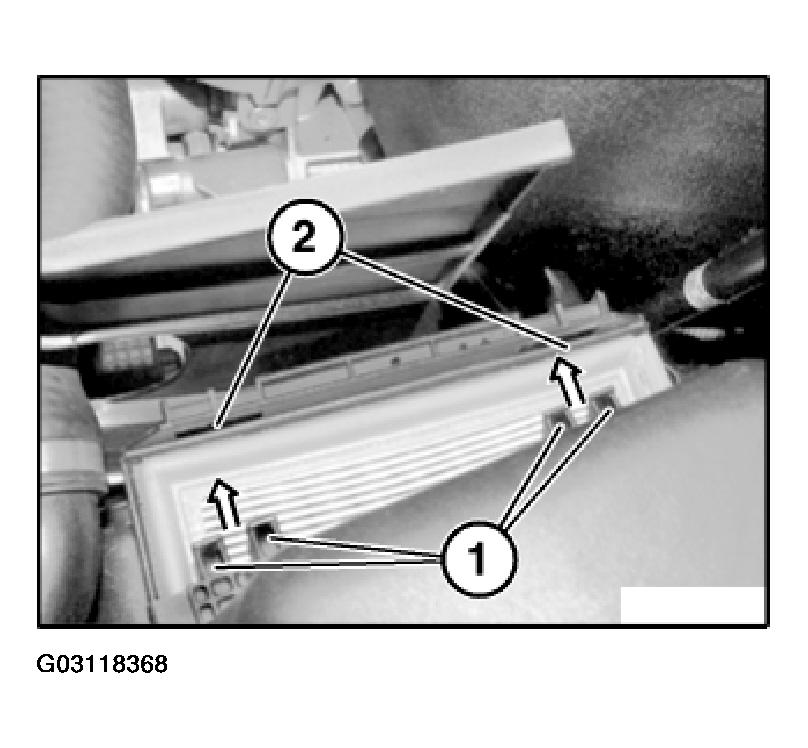

Insert retaining lugs (1) in openings (2).
Withdraw air cleaner element and replace.
Installation:
- Clean lower section of intake filter housing before installing new air cleaner element.
