Steering Spindle: Removal

WARNING: This page does not describe the selected car, but rather 61 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove steering wheel. See STEERING WHEEL  .
  2. On models without flexible coupling, remove clamping screws on steering spindle (top) and on steering gear. Slide steering spindle together and remove. See Fig 1 .
  3. On models without flexible coupling (except US models), remove clamping screws from universal joint and flexible coupling. Slide flexible coupling downwards. Pull steering spindle upwards out of flexible coupling and remove. See Fig 2 .
  4. On models with flexible coupling, US models with corrugated pipes, remove clamping screws from universal joint and flexible coupling. Slide flexible coupling downwards. Pull steering spindle upwards out of flexible coupling and remove. For 4 corrugated pipes see Fig 3 . For 8 corrugated pipes see Fig 4 .
  5. On all models, to install, reverse removal procedure. Set steering gear to straight ahead position. For 4 corrugated pipes, install steering spindle with screw (1) horizontal and installed underneath. For all others, Install steering spindle installing screw (1) vertically on engine end. On steering spindle without flexible coupling see Fig 1 . On steering spindle without flexible coupling except US models see Fig 2 . On steering spindle with flexible coupling, US models with 4 corrugated pipes, see Fig 3 . For 8 corrugated pipes see Fig 4 .
  6. Fit flexible coupling with short flange facing steering gear with right edge (2), viewed in direction of travel, of flexible coupling aligned with mark on steering gear. Slot then points vertically downwards. The edge of the lower joint must align with the marking on the steering gear. See Fig 5 .
  7. Ensure bolts engage in locking grooves of steering spindle (top) and steering gear spindle. Replace self-locking nuts and tighten to specification. See TORQUE SPECIFICATIONS  .
Fig 1: Removing Steering Spindle Without Flexible Coupling
G00173909Courtesy of BMW OF NORTH AMERICA, INC.
Fig 2: Removing Steering Spindle With Flexible Coupling (Non US)
G00173910Courtesy of BMW OF NORTH AMERICA, INC.
Fig 3: Removing Steering Spindle (US Model, 4 Corrugated Pipes)
G00173911Courtesy of BMW OF NORTH AMERICA, INC.
Fig 4: Removing Steering Spindle (US Model, 8 Corrugated Pipes)
G00173912Courtesy of BMW OF NORTH AMERICA, INC.

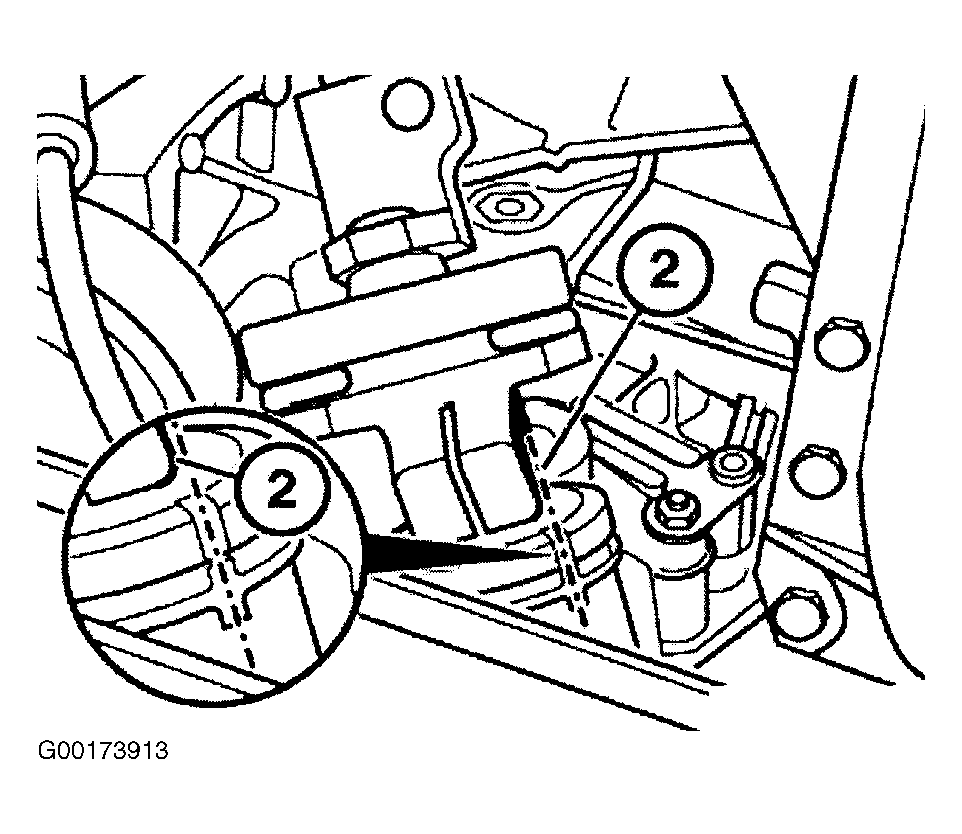

Fig 5: Aligning Steering Gear
G00173913Courtesy of BMW OF NORTH AMERICA, INC.
