11 36 582 Replacing Solenoid Valve On VANOS Adjustment Unit (S54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

E46 Only:

Remove expansion rivets. Remove air duct (1).

Fig 1: Removing Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) on solenoid valve.

CAUTION: Have a cleaning cloth ready. A small quantity of oil will emerge after the screws have been released. Make sure no oil runs onto belt drive. Remove any remnants of oil immediately with cleaning cloth.

Release screws and remove solenoid valve with sealing plate.

Fig 2: Disconnecting Plug Connection On Solenoid Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing plate (1). Sealing surfaces on solenoid valve and on VANOS adjustment unit clean and oil-free.

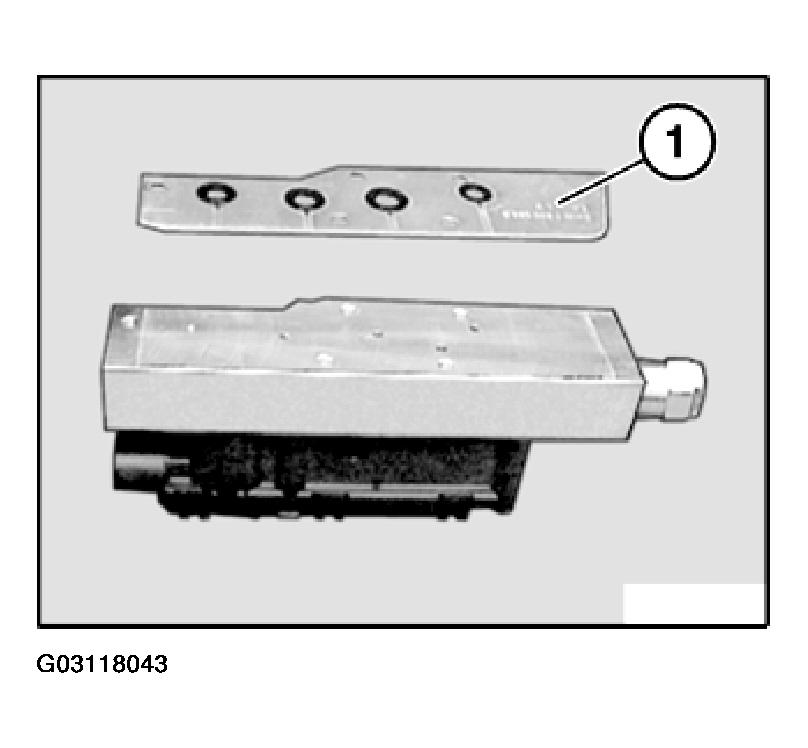

Fig 3: View Of Sealing Plate

Courtesy of BMW OF NORTH AMERICA, INC.
