11 61 Removing And Installing/Replacing Servomotor For Throttle On Control Unit (M3 CSL)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Unfasten plug connection and disconnect.

Release screws (1).

Detach servomotor (2) from fresh air housing.

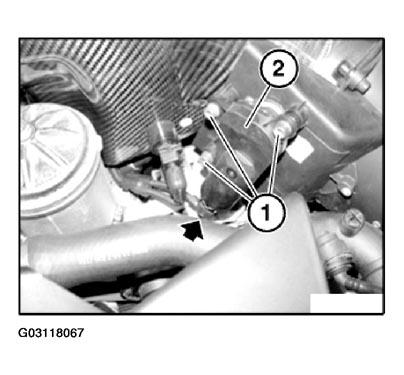

Fig 1: View Of Servomotor And Fresh Air Housing

Courtesy of BMW OF NORTH AMERICA, INC.
