00..... Lifting Vehicle With A Lifting Platform

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before driving onto a lifting platform, make sure there is sufficient ground clearance between the lifting platform and the car. The lifting platform must comply with the relevant statutory accident prevention regulations and be serviced according to the manufacturer's instructions.

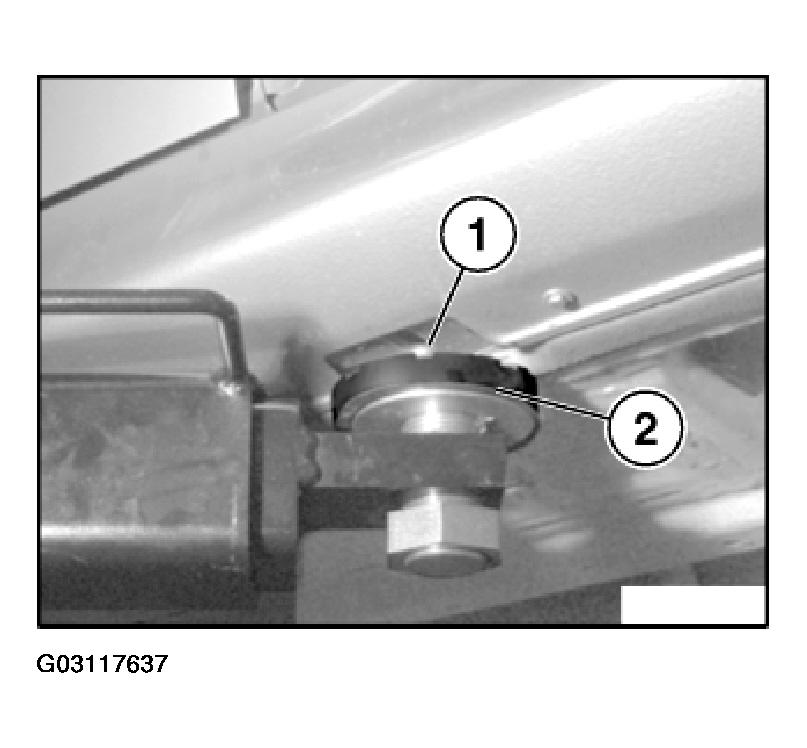

Fig 1: Locating Lifting Platform Securing Points

Courtesy of BMW OF NORTH AMERICA, INC.

Lifting platform securing points (1) must be fitted to the vehicle. If necessary, remove these securing points (1) from the equipment pack and clip into bores in front and rear spoiler area from below.

Make sure that the locating plate (2) of the lifting platform arm does not touch (and thereby damage) adjoining components.

IMPORTANT:

The vehicle may only be raised at the four reinforced supports!

NOTE: Follow the lifting gear operating instructions. In particular, follow the safety instructions and observe the carrying capacity of the lifting gear.
