00 11 229 Oil Change In Manual Transmission

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Gearbox must be at normal operating temperature. Gear oil:

Refer to OPERATING FLUIDS - MANUAL TRANSMISSION .

Filling capacities:

Refer to LUBRICATION .

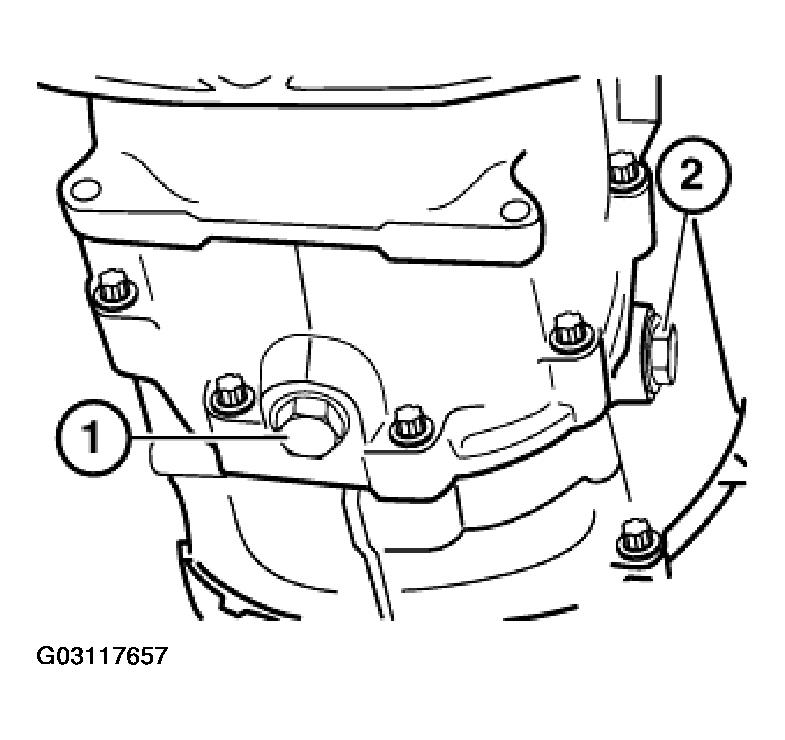

Fig 1: Locating Manual Transmission Oil Drain Plug And Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Draining gear oil:

Release oil drain plug (1) and filler plug (2).
Clean oil drain plug (1) and screw in.

Tightening torque, (65 N.m.).

Fill transmission with gear oil.

Pour in gear oil until overflowing.
Screw in filler plug (2).
Tightening torque, (60 N.m.).
