64 1 450 Spray unit
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.
SPRAY UNIT SPECIFICATION
| In conjunction with: | Pressure vessel spray gun, manufacturer: SATA (81 45 9 429 217) |
| Note: | For cleaning and disinfecting evaporator in A/C system |
| Series: | E39, E46, E53, E83 |
| SI number: | 1 22 00(648) |

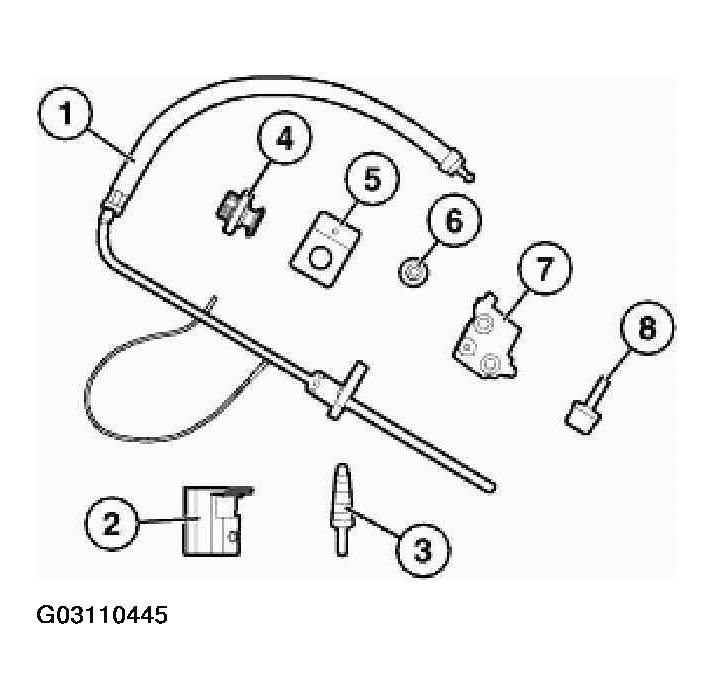

| Order number: | 64 1 450 Spray unit |
| Consisting of: 1 = 64 1 451 | Spray lance |
| 2 = 64 1 452 | Drilling hole template |
| Note: Model series: E39, E53 IHKA | |
| 3 = 64 1 453 | Center bit |
| Note: Model series: E39, E53 IHKA | |
| 4 = 64 1 454 | Guide |
| Note: Model series: E39, E53 IHKA | |
| 5 = 64 1 455 | Positioner |
| Note: Model series: E39, E53 IHKA | |
| 6 = 64 1 456 | Retaining screw |
| Note: Model series: E39, E53 IHKA | |
| 7 = 64 1 457 | Adapter |
| Note: Model series: E46 IHKA / R Model series: E39, E53 IHKR | |
| 8 = 64 1 458 | Seal plug |
| Note: Model series: E46 IHKA / R Model series: E39, E53 IHKR |
