61 9 110 Supplementary kit (engine electrical system)
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS DESCRIPTIONS
| Note: | For repair kit IV for electrical system 61 9 020 - Consisting of six assorted socket housings. Note: Reordering of individual components through BMW Parts Service only. |
| Series: | E36, E38, E39, E46 |
| Order number: | 61 9 110 Supplementary kit (engine electrical system) |

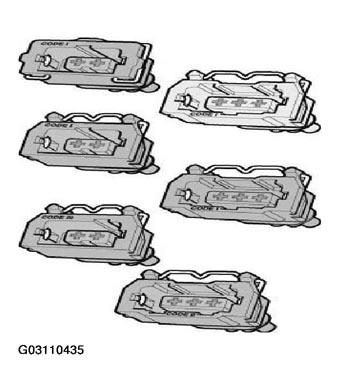

| Consisting of: 61 9 111 |
Socket housing, 2-pin |
| Note: Black, without release, coding 1, packaging unit 3 pieces | |
| 61 9 112 | Socket housing, 2-pin |
| Note: Black, with release, coding 1, packaging unit 3 pieces | |
| 61 9 114 | Socket housing, 2-pin |
| Note: Black, without release, coding 3, packaging unit 3 pieces | |
| 61 9 115 | Socket housing, 3-pin |
| Note: Gray, with release, coding 1, packaging unit 3 pieces | |
| 61 9 116 | Socket housing, 3-pin |
| Note: Black, with release, coding 1, packaging unit 3 pieces | |
| 61 9 117 | Socket housing, 3-pin |
| Note: Black, with release, coding 2, packaging unit 3 pieces |
