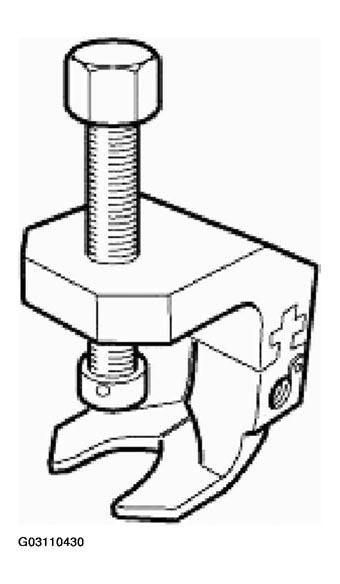

61 6 060 Universal wiper arm puller
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
SPECIAL TOOLS DESCRIPTIONS
| Note: | For removing windscreen wiper arm from drive shaft |
| Series: | E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, RR1 |
| Storage location: | B40 |
| SI number: | 1 10 99(433) |
| Order number: | 61 6 060 Universal wiper arm puller |
| Consisting of: 1 = 61 6 061 |
Basic body |
| 2 = 61 6 062 | Claw, left/right |
| 3 = 61 6 063 | Spindle |
| 4 = 61 6 064 | Thrust piece |
