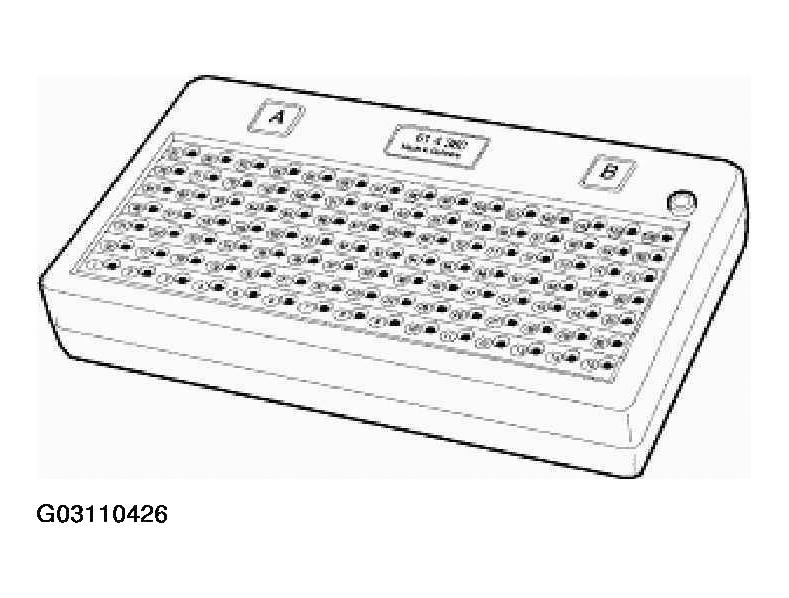

61 4 380 Measuring box, 105-pin, complete
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Measuring and testing equipment
SPECIAL TOOLS DESCRIPTIONS
| Note: | For connecting all adapter cables with 61 - pin to 105-pin plug connections |
| Series: | E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, R50, R52, R53, RR1 |
| Storage location: | G 110, S 205, U 202, U 205 |
| SI number: | 2 04 01(710) |
| Order number: | 61 4 380 Measuring box, 105-pin, complete |
| Consisting of: 1 = 61 4 381 |
Measuring box, 105-pin |
| Note: Without accessories | |
| 2 = 61 4 382 | Test lead, black |
| Note: 2 mm system, lead length: 750 mm | |
| 3 = 61 4 383 | Test lead, red |
| Note: 2 mm system, lead length: 750 mm | |
| 4 = 61 4 384 | Test lead set |
| Note: 2/4 mm system, lead length: 200 mm | |
| 5 = 61 4 385 | Earth/ground cable |
| Note: For shield pick-off, lead length: 1.5 m |
