61 2 070 Cable set
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Measuring and testing equipment
SPECIAL TOOLS DESCRIPTIONS
| Note: | For performing installation and adjustment work with front seat with electric seat adjustment removed 61 2 071 for activating removed convertible top E85 and R52 |
| Series: | E31, E36, E38, E46, E52, E60, E61, E65, E66, E85, R52, RR1 |
| Storage location: | R 204, R 205, R 206, R 207 |
| SI number: | 2 12 91(450) |

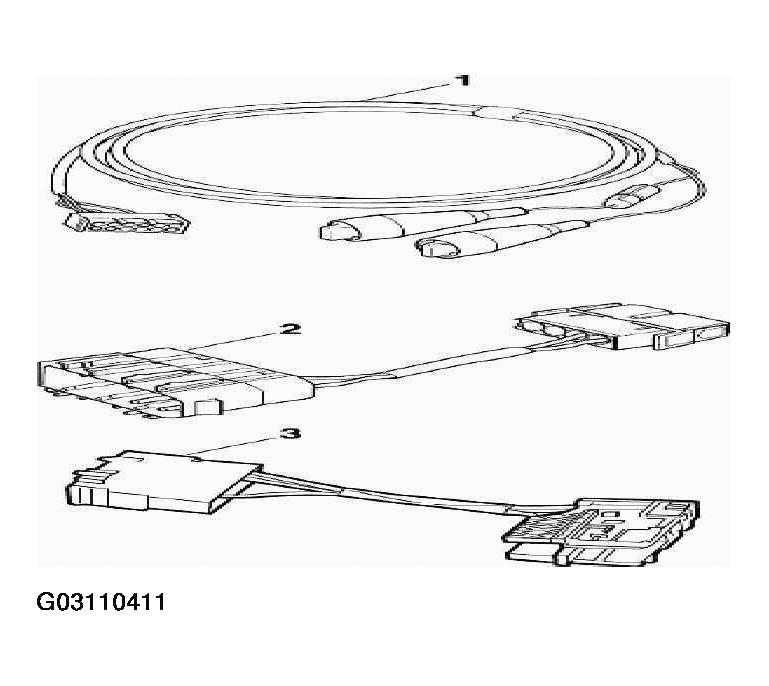

| Order number: | 61 2 070 Cable set |
| Consisting of: 1 = 61 2 071 |
Power supply cable |
| Note: Connection between a battery and different adapter cables | |
| 2 = 61 2 072 | Adapter cable |
| Note: Model series: E36 | |
| 3 = 61 2 073 | Adapter lead |
| Note: Model series: E38 In conjunction with: 61 2 071 |
|
| 4 = 61 2 074 | Adapter lead |
| Note: Model series: E46, E52 In conjunction with: 61 2 071 |
|
