61 1 350 Set of assembly tools
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of BMW OF NORTH AMERICA, INC. SPECIAL TOOLS DESCRIPTIONS
| Note: |
For removing and installing socket in transmission connector on automatic transmission |
| Transmission: |
4 HP 22, 4 HP 24 |
| Storage location: |
I 103 |
| Order number: |
61 1 350
Set of assembly tools |

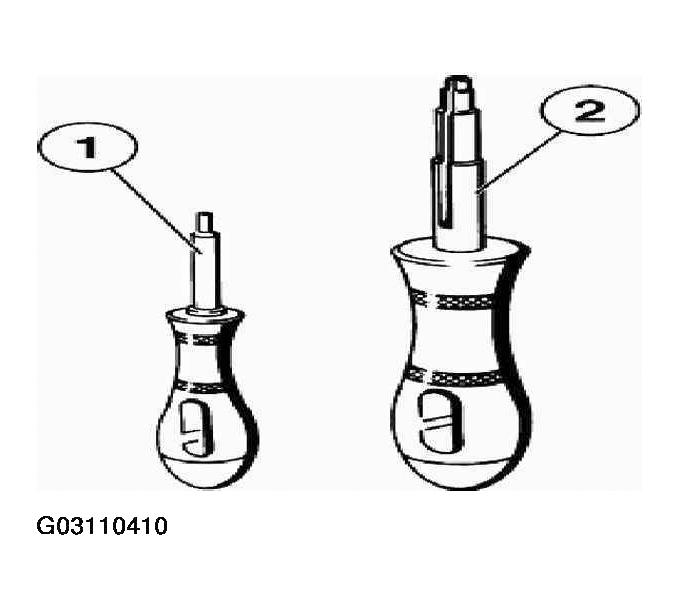

Consisting of:
1 = 61 1 351 |
Removal tool |
| 2 = 61 1 352 |
Fitting drift |
