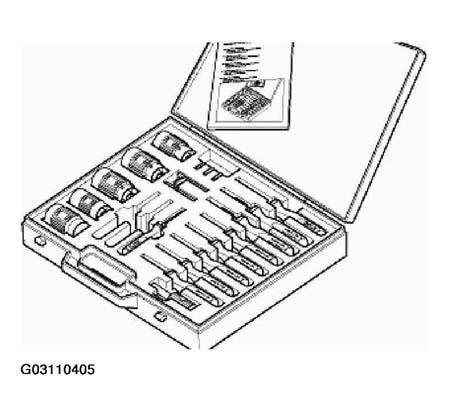

61 1 150 Releasing tool kit
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
SPECIAL TOOLS DESCRIPTIONS
| Note: | For circular connector / ejector tool - Contains the kits 61 1 130, 61 1 140 and 61 1 180 |
| Series: | E12, E21, E23, E24, E28, E30, E31, E32, E34, E36, E38, E39, E46, E52, E53, E65, E66, E83, E85, R50, R53, RR1 |
| Storage location: | K 106 |
| Order number: | 61 1 150 Releasing tool kit |
| Consisting of: 61 1 151 |
Pressing-out tool |
| Note: For Power-Timer contacts / AMP and Bosch | |
| 61 1 152 | Pressing-out tool |
| Note: For Micro-Timer contacts | |
| 61 1 153 | Release tool |
| Note: For retaining tabs of relay holder | |
| 61 1 154 | Replacement sleeve dia. 1.5 mm for 61 1 139 |
| Note: Order number was reserved in 8/95 on delivery of case temporarily for case insert | |
| 61 1 155 | Replacement sleeve dia. 3.5 mm for 61 1 133 |
| 61 1 156 | Replacement sleeve dia. 2.5 mm for 61 1 132 |
| 61 1 157 | Replacement sleeve dia. 1.5 mm for 61 1 131 |
| 61 1 158 | Case with insert |
| 61 1 159 | Operating instructions |
| 61 1 131 | Pressing-out tool |
| Note: For 1.5 mm round contacts | |
| 61 1 132 | Pressing-out tool |
| Note: For 2.5 mm round contacts | |
| 61 1 133 | Pressing-out tool |
| Note: For 3.5 mm round contacts | |
| 61 1 134 | Pressing-out tool |
| Note: For mini flat spring contacts | |
| 61 1 135 | Pressing-out tool |
| Note: For standard flat spring contacts | |
| 61 1 136 | Processing-out tool |
| Note: For Power Timer contacts (G & H) | |
| 61 1 137 | Pressing-out tool |
| Note: For Timer contacts | |
| 61 1 138 | Socket wrench |
| Note: For telltale lamps (instrument cluster) | |
| 61 1 139 | Pressing-out tool |
| Note: Slotted sleeve for 1.5 mm dia. Kostal round contacts | |
| 61 1 141 | Release tool |
| Note: For D 2.5 / ELA, 4-pin, round | |
| 61 1 142 | Release tool |
| Note: For D 2.5 / ELA, 7-pin, round | |
| 61 1 143 | Release tool |
| Note: For D 2.5 / ELA, 12-pin, round | |
| 61 1 144 | Release tool |
| Note: For D 2.5 / ELA, 25-pin, round | |
| 61 1 145 | Release tool |
| Note: For D 1.5 / ELA, 10-pin, round | |
| 61 1 149 | Replacement blades |
| Note: For pressing-out tool 61 1 148 | |
| 61 1 148 | Pressing-out tool for SLC |
| Note: SLK = Sensor Laminated Contacts | |
| 61 1 180 | Pressing-out tool |
| Note: For load current contacts This individual tool belongs to 61 1 150 |
