Brake Booster: Installation
WARNING: This page does not describe the selected car, but rather 92 other vehicles, including the 2002 BMW Z3, 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW Z3, and 2001 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

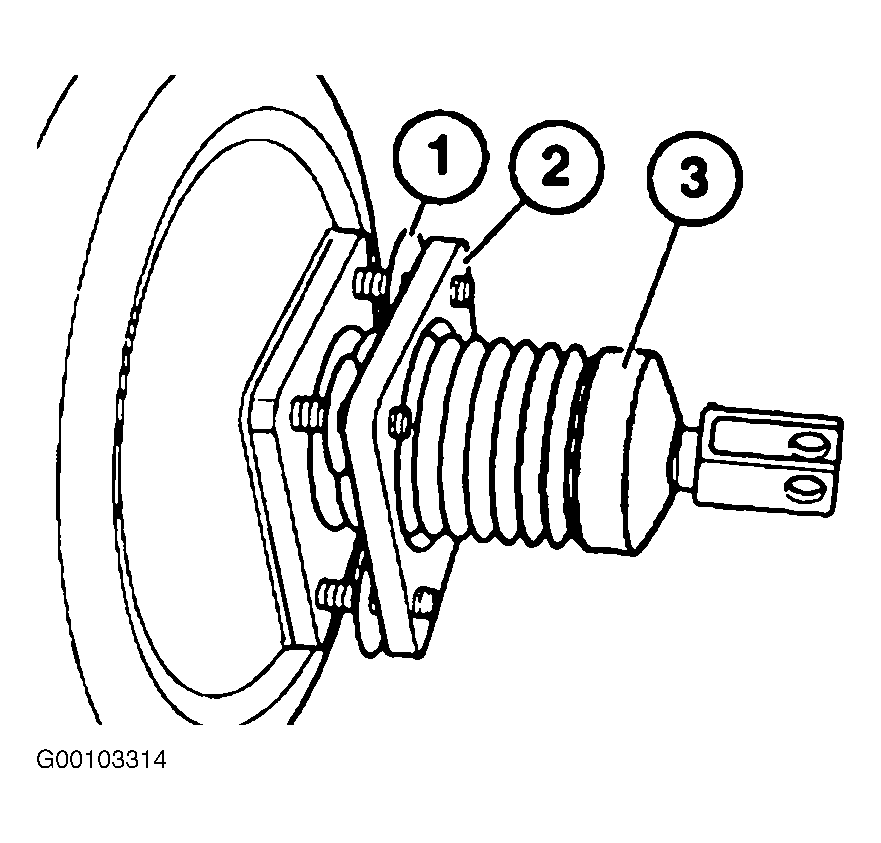

- Install adapter plate (1), replacing gasket (2) if necessary. See Fig 1.
- Carefully insert brake booster unit into place.
- Push pedal assembly into place and replace self-locking nuts.
- Balance of assembly is reverse of removal.
CAUTION:
Region (3) of the brake unit is very susceptible to damage that could lead to the breakdown of the brake unit. See Fig 1.
