36 1 030 Tester
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL DESCRIPTION
| Note: | For measuring vertical and lateral runout of wheels |
| Series: | E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, R50, R52, R53, RR1 |
| SI number: | 1 11 00(594) |
| Order number: | 36 1 030 Tester |

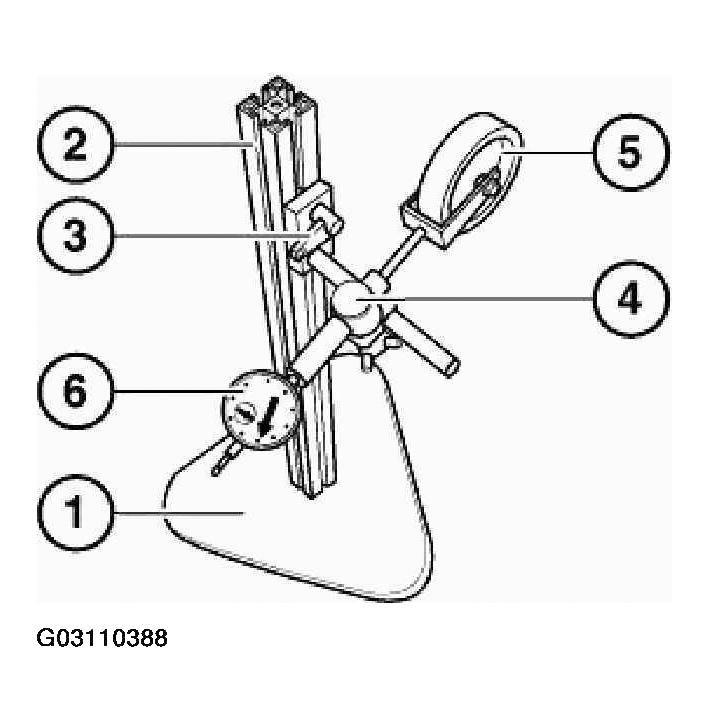

| Consisting of: | |
| 1 = 36 1 031 | Pedestal |
| 2 = 36 1 032 | Post with clamp |
| 3 =36 1033 | Holder with clamp |
| 4 = 36 1 034 | Clamp |
| 5 = 36 1 035 | Measuring roller |
| 6 = 36 1 036 | Dial gauge |
