17 2 010 Set of adapters
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
SET OF ADAPTERS
| Note: | For oil dispensers for flushing oil coolers of automatic transmissions |
| Transmission: | A4S 31 0R, A5S 300J, A5S 310Z, A5S 325Z, A5S 360R, A5S 390G, A5S 440Z, A5S 560Z, GA6 HP19Z, GA6 HP26Z, GA6 HP32Z |
| SI number: | 1 12 96(103) |
| Order number: | 17 2 010 Set of adapters |

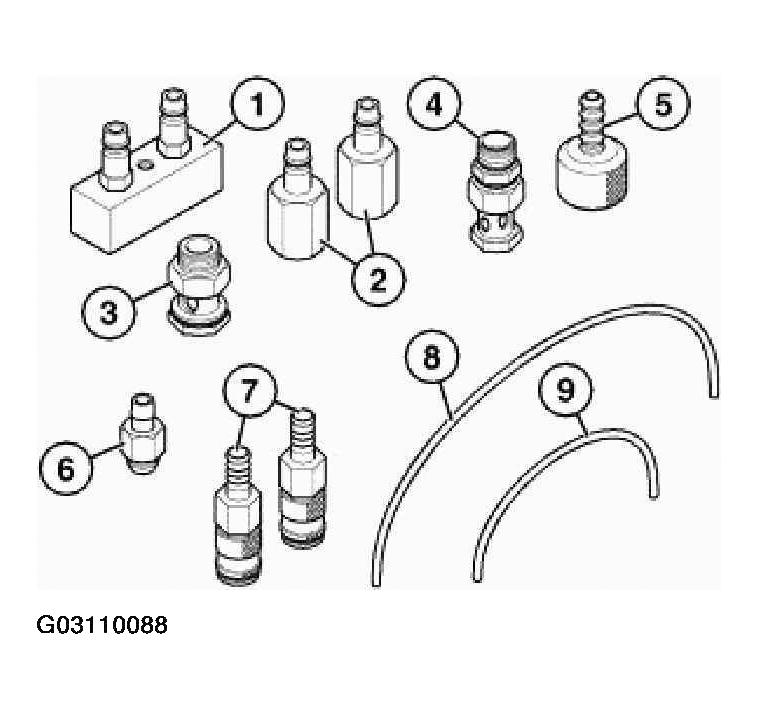

| Consisting of: | |
| 1 = 17 2 011 | Adapter |
| Note: For connecting oil cooler lines to oil dispensing unit - transmission: A5S 310Z, A5S 560Z, A5S 325Z In conjunction with: 17 2 015, 17 2 016, 172017, 172018, 172019 |
|
| 1 = 17 2 021 | Retaining plate |
| Note: For Adapter 17 2 011 - transmission: A5S 325Z | |
| 2 =17 2 012 | Adapter (2 x) |
| Note: For connecting oil cooler lines to oil dispensing unit - transmission: A4S 310R In conjunction with: 17 2 015, 17 2 016, 17 2 017, 17 2 01, 17 2 018, 17 2 019 |
|
| 3 = 17 2 013 | Banjo bolt (2 x) |
| Note: M18 x 1.5 thread with nut and seal for connecting oil cooler lines to oil dispensing unit - transmission: A5S 440Z In conjunction with: 17 2 012, 17 2 015, 17 2 016, 17 2 017, 17 2 018, 17 2 019 |
|
| 4 = 17 2 014 | Banjo bolt (2 x) |
| Note: M16x1.5 thread with nut, seal and threaded piece for connecting oil cooler lines to oil dispensing unit - transmission: A5S 300J In conjunction with: 17 2 012, 17 2 015, 17 2 016, 17 2 017, 17 2 018, 17 2 019 |
|
| 5 =17 2 015 | Connecting piece |
| Note: For Tecalemit oil dispensing unit | |
| 6 = 17 2 016 | Connecting piece |
| Note: For Horn oil dispensing unit | |
| 7 = 17 2 017 | Coupling (2 x) |
| 8 = 17 2 018 | Hose, long |
| 9 = 17 2 019 | Hose, short |
