17 0100 Tester
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
TESTER
| Note: | For checking engine cooling system for water leaks. For checking radiator cap. |
| Series: | E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, R50, R52, R53, RR1 |
| Engine: | M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N45, N46, N52, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, W10, W11, W17 |
| SI number: | 01 07 02 (884) |
| Order number: | 17 0 100 |

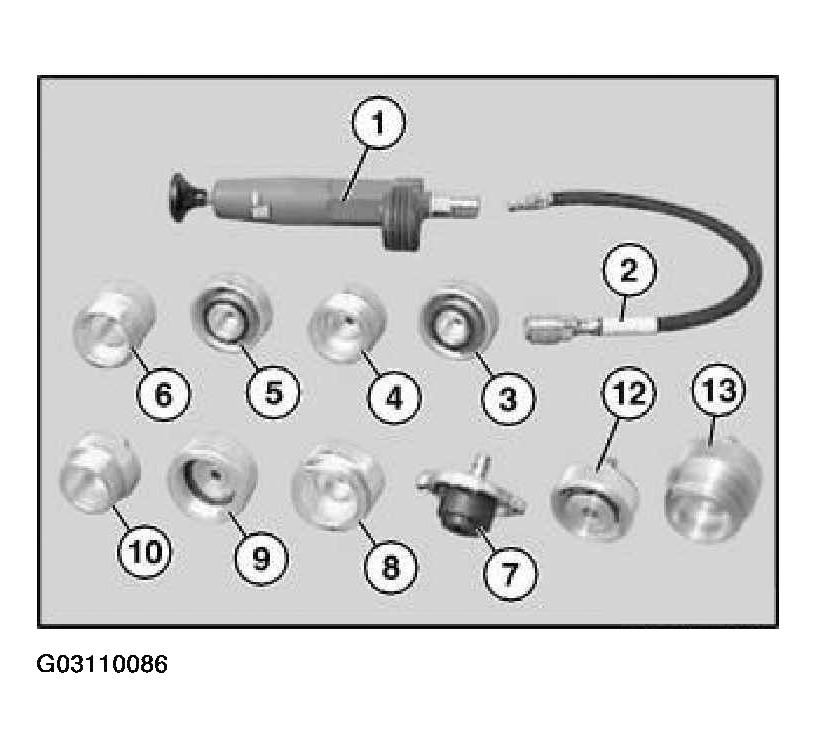

| Consisting of: | |
| 1 = 170 101 | Pump |
| 2 =17 0 102 | Hose with quick-connect coupling |
| 3 = 17 0 103 | Adapter |
| Note: For radiator cap (normal thread) | |
| 4 = 17 0 104 | Adapter |
| Note: For radiator cap (normal thread) | |
| 5 = 17 0 105 | Adapter |
| Note: For radiator cap (sawtooth thread) | |
| 6 = 17 0 106 | Adapter |
| Note: For radiator cap (sawtooth thread) | |
| 7 = 17 0 107 | Adapter |
| Note: For radiator cap R50 / W10 | |
| 8 = 17 0 108 | Adapter |
| Note: For radiator cap R50 / W10 | |
| 9 = 17 0 109 | Adapter |
| Note: For radiator connection R53/W11, R50/W17 Adapter corresponds to 17 0 051 | |
| 10 = 170 111 | Adapter |
| Note: For radiator cap R53/W11, R50/W17 Adapter corresponds to 17 0 052 | |
| 11 = 17 0 112 | Case |
| 12 = 17 0 113 | Adapter |
| Note: For radiator cap Model series: E60, E61, E63, E64 SI no.: 1 08 03 (988) | |
| 13= 17 0 114 | Adapter |
| Note: For radiator cap Model series: E60, E61, E63, E64 SI no.: 1 08 03 (988) |
