17 0 130 Set of adapters
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
SET OF ADAPTERS
| In conjunction with: | 17 0 101,17 0 102 |
| Note: | For connecting adapters from 17 0 000 to pump 17 0 101 and hose 17 0 102. |
| SI number: | 01 07 02 (884) |
| Order number: | 17 0 130 of adapters |

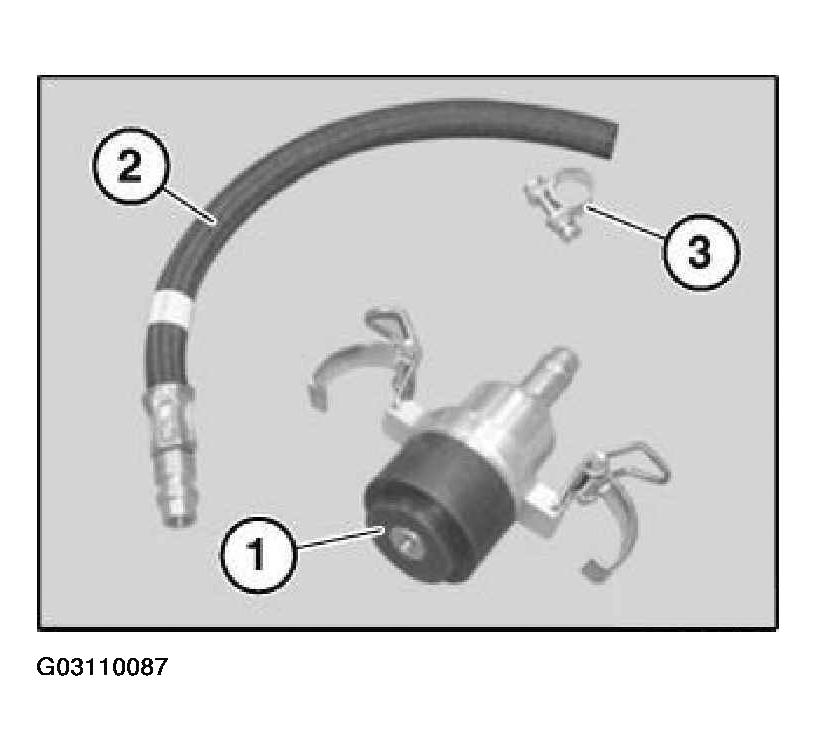

| Consisting of: | |
| 1 = 17 0 131 | Adapter |
| Note: For connecting pump 17 0 101 and hose 17 0 102 to adapter from 17 0 000 | |
| 2 = 17 0 132 | Hose with coupling connection |
| Note: For connecting pump 17 0 101 to adapter 17 0 007 | |
| 3 = 17 0 133 | Hose clamp |
| Note: For hose 17 0 132 |
