17 0 000 Tester
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
TESTER
| Note: | For checking cooling system for leaks and function of pressure relief valve in radiator cap. Replaced by 17 0 100 |
| Storage location: | A43, C17 |
| Order number: | 17 0 000 |

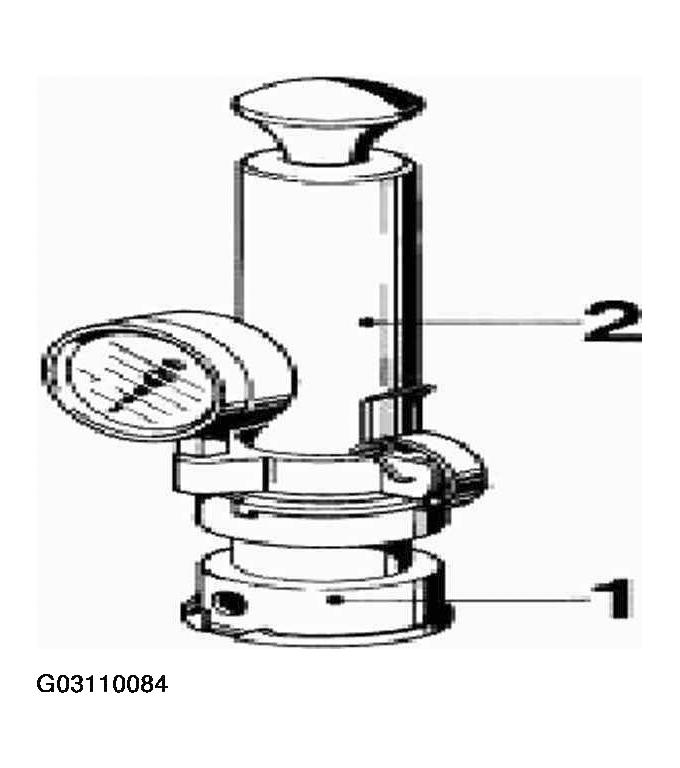

| Consisting of: 1 =17 0 001 |
Adapter |
| Note: For checking pressure relief valve in radiator cap / model series: all, except E28 | |
| 2 = 17 0 002 | Tester without adapter |
| Note: Pressure range 0...2.5 bar / model series: all, except E28 | |
| 3 =17 0 003 | Screw neck |
| Note: For screw-on radiator caps (normal thread)/ model series: E28, E30, E31, E32 Engine: all, except M51 | |
| 4 = 17 0 004 | Adapter |
| Note: For screw-on radiator caps (normal thread) / model series: E28, E30, E32 / Engine: M51 | |
| 5 = 17 0 005 | Screw neck |
| Note: For screw-on radiator caps (buttress thread) / model series: E31, E32, E34, E36, E38, E39 | |
| 7 = 17 0 007 | Adapter |
| Note: For checking expansion tank cap / model series: E31, E32, E34, E36, E38, E39 | |
| 8 = 17 0 008 | Pressure hose |
| 9 =17 0 009 | Adapter for radiator expansion tank |
| Note: Model series: E36 / Model: M3 US Engine W10 |
