13 5 220 Adapter
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
SPECIAL TOOL DESIGNATION
| In conjunction with: | 13 3 063 or 13 6 051 |
| Note: | For pressure gauge 13 3 061 or BMW DIS for measuring fuel pressure at injection rail |
| Engine: | M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N62, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, W10, W11, W17 |
| Storage location: | C16 |
| SI number: | 1 06 95 (963) |
| Order number: | 13 5 220 |

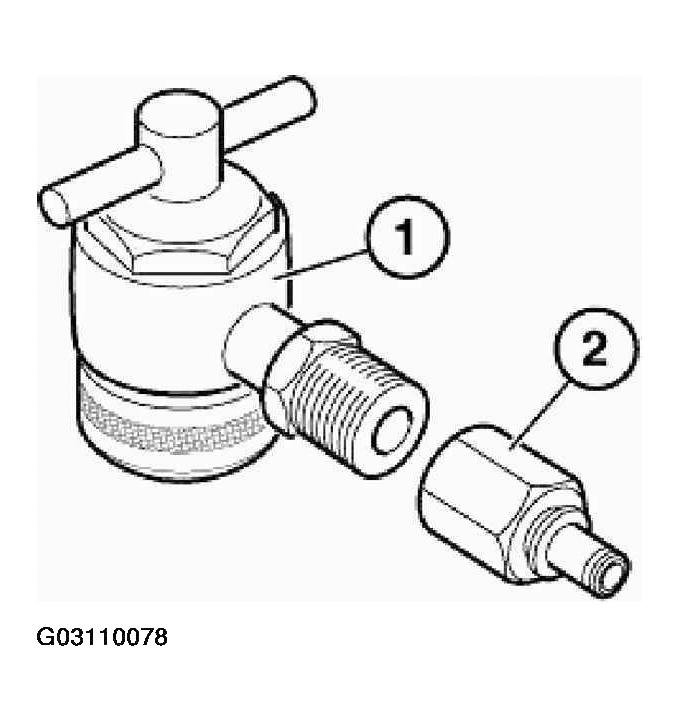

| Adapter | |
| Consisting of: | |
| 1 = 13 5 221 | Adapter |
| Note: | Engine: M43, M44, M52, M62 |
| 2 = 13 5 222 Coupling connector | |
| Note: | For connecting DIS pressure sensor |
