119 260 Counter support with screw connection
WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, and 2005 BMW 325Ci. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
COUNTER SUPPORT WITH SCREW CONNECTION SPECIFICATION
| Note: | For locking flywheel with transmission removed |
| Engine: | M47TU, M54, M57T2, M57TU, N40, N42, N45, N46, N52, N62, N73, S85, W17 |
| Storage location: | A45, B43, C44 |
| SI number: | 1 01 01 (662) |

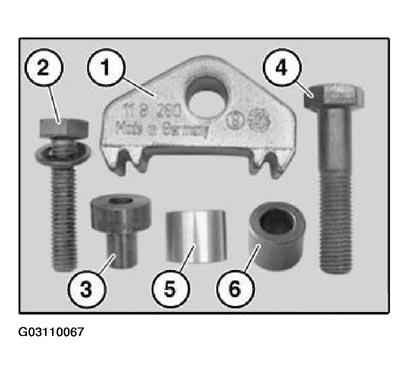

| Order number: | 11 9 260 Counter support with screw connection |
| Consisting of: 1 = 11 9 261 | Counterholder, individual |
| 2 = 11 9 262 | Bolt (M10 thread) with washer |
| Note: | For bolting down counterholder |
| 3 = 11 9 263 | Sleeve for counterholder |
| Note: | For counterholder for locking flywheel with transmission removed engine: N62, N73 |
| 4 = 11 9 264 | Bolt (M12 thread) |
| Note: | For counterholder for locking flywheel with transmission removed |
| 5 = 11 9 265 | Sleeve |
| 6 = 11 9 266 | Sleeve |
| Note: | For counterholder for locking flywheel with transmission removed Engine: M57TU2 |
