11 9 000 Cylinder head expander tool
WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, and 2005 BMW 325Ci. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
CYLINDER HEAD EXPANDER TOOL SPECIFICATION
| In conjunction with: | Assembly stand 00 1 450 |
| Engine: | M10, M20, M20B25, M20B27, M21, M30, M30B34, M30Tur, M40, M41, M42, M43, M43TU, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57D25, M57D30, M57TU, M60, M62, M62VAN, M67, M70, M73, M88, N40, N42, N45, N46, N52, N62, N73, S14, S38, S50B30, S50B32, S50US, S52US, S54, S62, S85, W10, W11, W17 |
| Storage location | Single |
| SI number: | 1 03 02 (833) |
| Order number: | 11 9 000 Cylinder head expander tool |

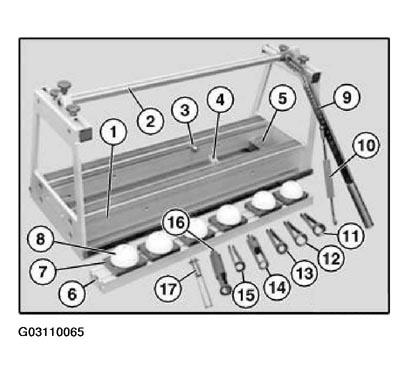

| Consisting of: 1 = 11 9 001 | Fixture |
| 2 = 11 9 002 | Rod |
| 3 = 11 9 003 | Sliding block with M10 thread |
| 4 = 11 9 00 | Tab |
| 5 = 11 9 005 | Quick tensioner |
| 6 = 11 9 006 | Aluminum profile insert |
| 7 = 11 9 007 | Slide |
| 8 = 11 9 008 | Profile plastic part |
| 9 = 11 9 009 | Lever |
| 10 = 11 9 011 | Hook |
| 11 = 11 9 012 | Valve spring cage |
| Note: | Engine M41, M51, S50 |
| 12 = 11 9 013 | Valve spring cage |
| Note: | Engine M43, M73 |
| 13 = 11 9 014 | Valve spring cage |
| Note: | Engine M44, M52, M54, M56, M62, S52, S54, S62 |
| 14 = 11 9 015 | Valve spring cage |
| Note: | Engine M47, M47TU, M57, M57TU, N40, N42, N62, N73 |
| 15 = 11 9 016 | Valve spring cage |
| Note: | Engine M21, M40 |
| 16 = 11 8 421 | Valve spring cage |
| Note: | Engine: W10, W11, W17 |
| 18 = 11 9 017 | Valve spring cage |
| Note: | Engine N52 |
