11 8 140 Assembly sleeves
WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, and 2005 BMW 325Ci. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
ASSEMBLY SLEEVES SPECIFICATION
| Note: | For installing pistons |
| Engine: | M52, M52TU, M54, M56, M67, N40, N42, N45, N46, N62, S52US |
| SI number: | 1 12 99(452) |
| Order number: | 11 8 140 Assembly sleeves |

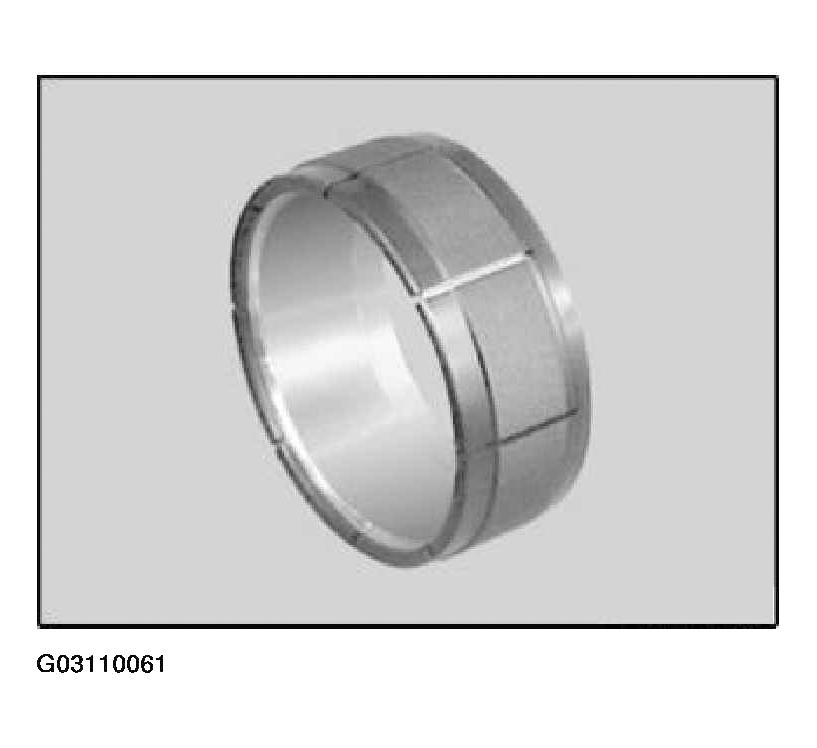

| Consisting of: 1 = 11 8 141 | Bushing |
| Note: | Bushing for piston mounting 84.00mm |
| 2 = 11 8 142 | Bushing |
| Note: | Bushing for piston mounting 84.08 mm |
| 3 = 11 8 143 | Bushing |
| Note: | Bushing for piston mounting 84.25 mm |
