11 8 020 Engine securing fixture
WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, and 2005 BMW 325Ci. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
ENGINE SECURING FIXTURE SPECIFICATION
| Note: | For securing engine in position during removal and installation of transmission |
| Series: | E36, E46, E85 |
| Engine: | M51, M52, M52TU, M54, M57TU, S50B30, S50B32 |
| SI number: | 1 12 92(606) |
| Order number: | 11 8 020 Engine securing fixture |

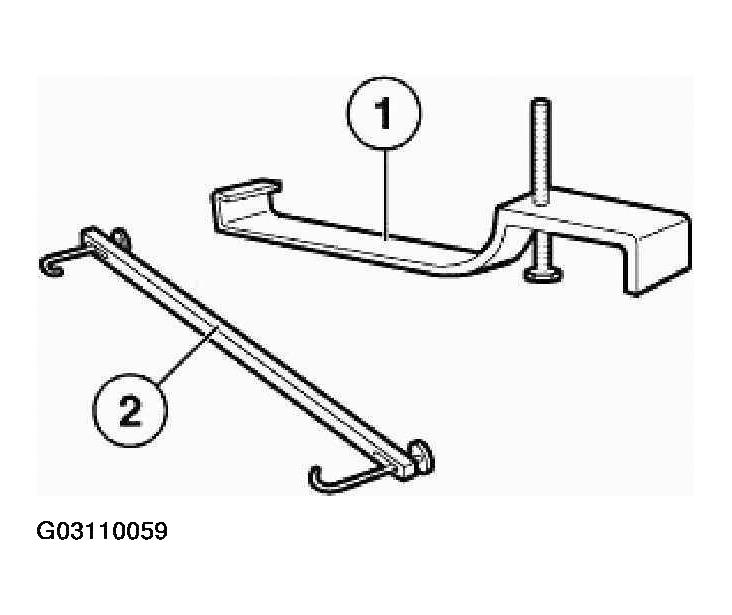

| Consisting of: 1 =11 8 021 | Engine fixture, front |
| Note: | Engine: S50/B30 |
| 2 = 11 8 022 | Engine fixture, rear |
| Note: | E36/M51/M52, E46/M52TU/M54, E85/M54, E46/M57TU |
