11 7 390 Complete pressure testing fixture
WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, and 2005 BMW 325Ci. However, it is still accessible from the selected car via links, so may be relevant.
PRESSURE TESTING FIXTURE SPECIFICATION
| Note: | For closing off coolant outlet openings when pressure-testing cylinder head for water leaks |
| Engine: | M52TU, M54, M56 |

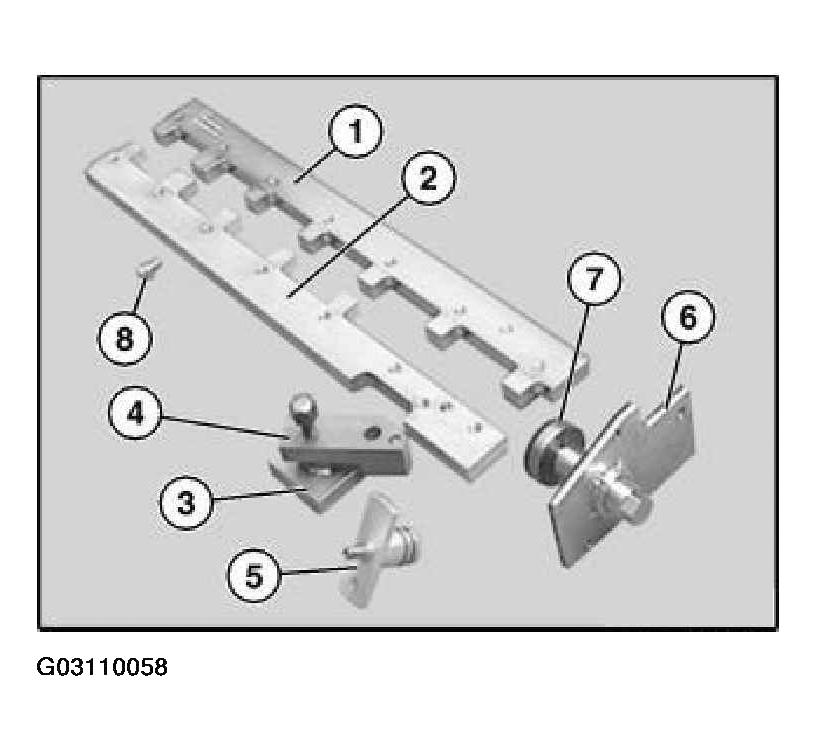

| Order number: | 11 7 390 Complete pressure testing fixture |
| Consisting of: 1 =11 7 391 | Sealing strip with 7 lugs |
| 2 = 11 7 392 | Sealing strip with 5 lugs |
| 3 = 11 7 393 | Cover plate |
| Note: | For cylinder head sealing face |
| 4 = 11 7 394 | Support bracket |
| Note: | With pressure spindle and mounting screw for 11 7 393 |
| 5 = 11 7 395 | Screw plug |
| Note: | With air connection |
| 6 = 11 7 396 | Cover plate, end face |
| 7 = 11 7 397 | Spindle |
| Note: | With thrust piece for 11 7 396 |
| 8 = 11 7 398 | Screw plug, intake side |
