11 3 260 Fixture
WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, and 2005 BMW 325Ci. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools

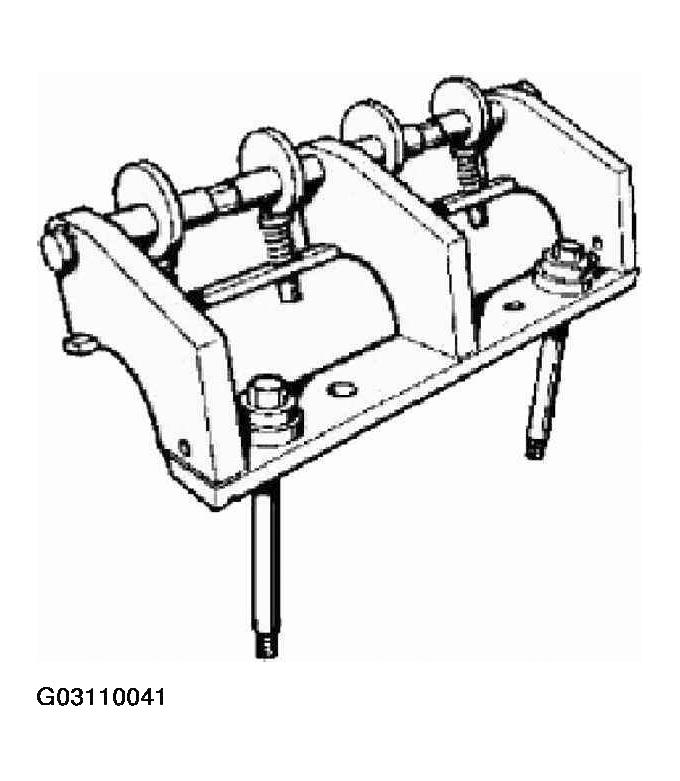

FIXTURE SPECIFICATION
| Note: | For evenly pressing down camshaft (with bearing cap) while releasing and tightening camshaft bearing caps |
| Engine: | M42, M50, M52, M52TU, M54, M56, S50US, S52US |
| SI number: | 1 05 89(099) |
| Order number: | 11 3 260 Fixture |
| Consisting of: 1 = 11 3 261 | Assembly fixture |
| 2 = 11 3 262 | Fastener bolt (2) |
