11 3 240 Locking fixture
WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, and 2005 BMW 325Ci. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
LOCKING FIXTURE SPECIFICATION
| Note: | For locking camshaft in position when adjusting timing |
| Engine: | M42, M44, M50, M52, M52TU, M54, M56, S50US, S52US |
| Storage location: | A11 |
| SI number: | 1 05 89(099) |
| Order number: | 11 3 240 |

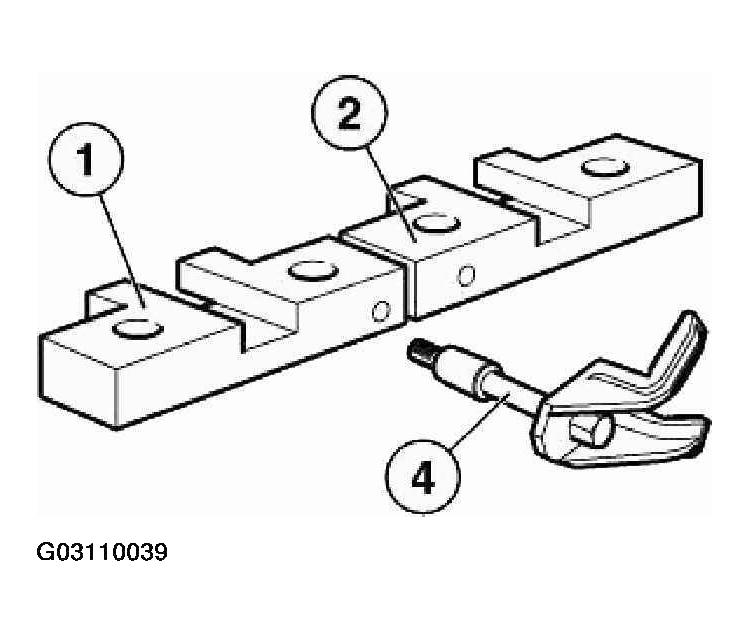

| Locking fixture | |
| Consisting of: 1 = 11 3 241 | Gauge for inlet side |
| 2 = 11 3 242 | Gauge for exhaust side |
| 4 = 11 3 244 | Support bracket |
| Note: | For securing camshaft marking fixture on cylinder head |
