11 2 470 Guide mandrel (2)

WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, and 2005 BMW 325Ci. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

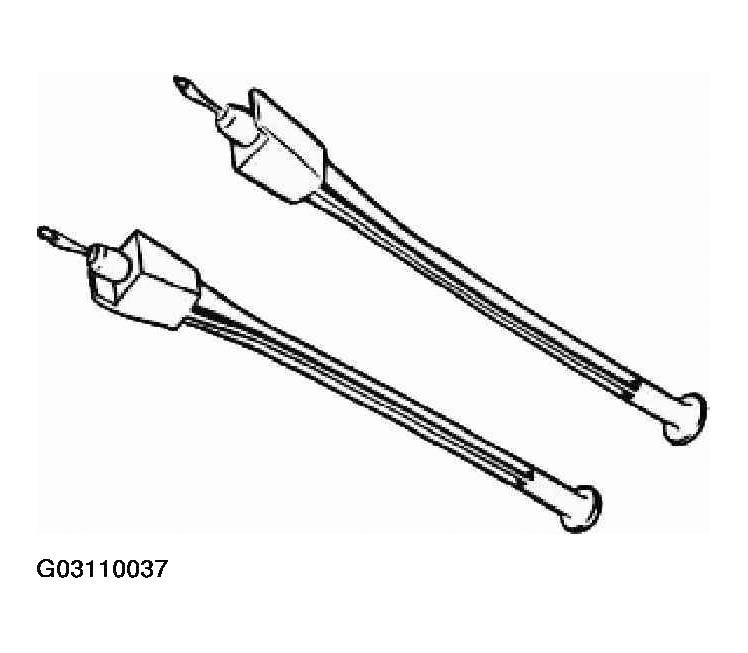

Fig 1: Identifying 11 2 470 Guide Mandrel (2)

Courtesy of BMW OF NORTH AMERICA, INC.

GUIDE MANDREL SPECIFICATION

Note:	For installing connecting rods with piston
Engine:	M40, M41, M50, M52, M52TU, M54, M56, M60, M62
Storage location:	B2, C2
SI number:	1 05 92(507)
Order number:	11 2 470 Guide mandrel (2)
