11 2 380 Puller
WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, and 2005 BMW 325Ci. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
PULLER SPECIFICATION
| Note: | For removing rotary shaft seal from timing case cover |
| Engine: | M41, M47, M50, M51, M52, M52TU, M54, M56, M60, M62, S50B30, S50B32, S54, S62, W10, W11 |
| Storage location: | A38, C25 |
| SI number: | 1 05 92 (507) |
| Order number: | 11 2 380 Puller |

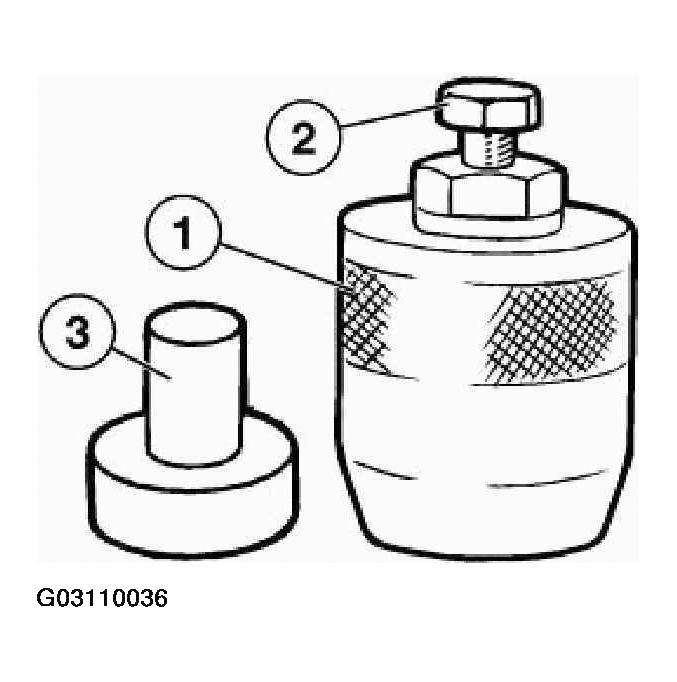

| Consisting of: 1 = 11 2 381 | Threaded bell housing |
| 2 = 11 2 382 | Spindle |
| 3 = 11 2 38 | Thrust piece |
| Note: | Engine: M41, M47, M50, M51, M52, M60, M62, PENT |
| 11 2 384 | Thrust piece |
| Note: | Engine: S50, S54 |
| 11 2 385 | Spacer bushing |
| Note: | Engine: M41, M50, M51, M52 |
| 11 2 386 | Thrust piece |
| Note: | Engine: S62 |
