11 2 340 Extractor
WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, and 2005 BMW 325Ci. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
EXTRACTOR SPECIFICATION
| In conjunction with: | 11 2 016 (M60, M62) |
| Note: | For guide bearing in crankshaft, stem diameter 15 mm |
| Engine: | M41, M42, M43, M43TU, M44, M47, M47TU, M50, M51, M52, M52TU, M54, M56, M57, M57TU, M60, M62, M70, M73, N40, N42, N45, N46, S50B30, S50B32, S54, S62, S85 |
| Storage location: | C26 |
| SI number: | 1 05 90 (207) |
| Order number: | 11 2 340 Extractor |

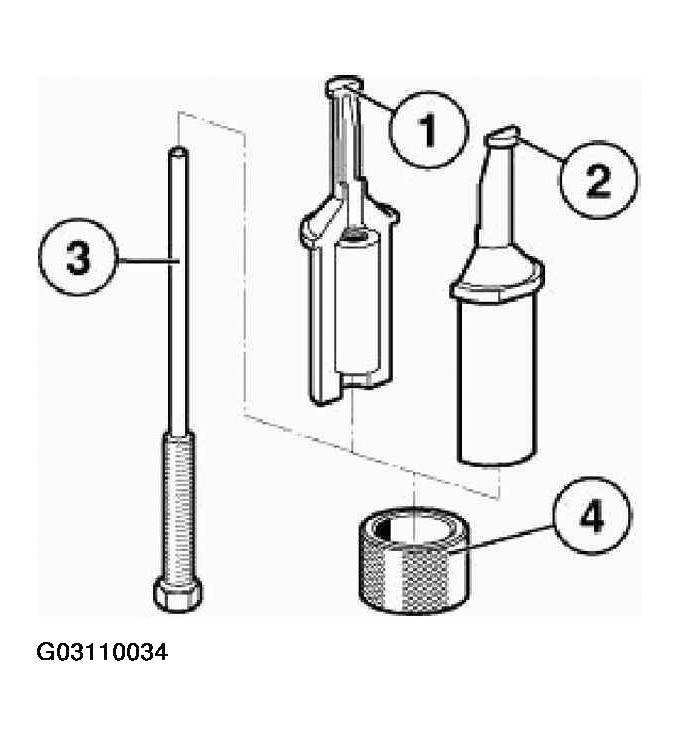

| Consisting of: 1 = 11 2 | Extractor claw with threaded bush |
| 2 = 11 2 342 | Extractor claw |
| 3 = 11 2 343 | Pressure spindle |
| 4 = 11 2 344 | Sleeve |
