11 2 030 Drift

WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, and 2005 BMW 325Ci. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

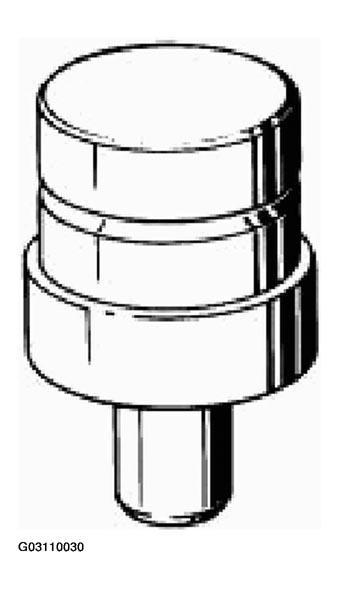

Fig 1: Identifying 11 2 030 Drift
G03110030Courtesy of BMW OF NORTH AMERICA, INC.
DRIFT SPECIFICATION

In conjunction with: 00 5 500
Note: For driving the guide bearing into the crankshaft (S14, S38, M10, M20, M21, M30, M40, M42, M50, M51 M52) and driving the centering support into the propeller shaft
Series: E28, E30, E32, E34, E36, E38, E39, E46, E52, E65, E66, E85, E87, E90, RR1
Storage location: A28
Order number: 11 2 030 Drift
