Level Curve Of The Zero-Position Sensor: Level Change Between High And Low
WARNING: This page does not describe the selected car, but rather 37 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, 2005 BMW 330xi, and 2005 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.
The level curve of the output signal corresponds to the degree of overlap of the Hall sensor and the sensor plate.

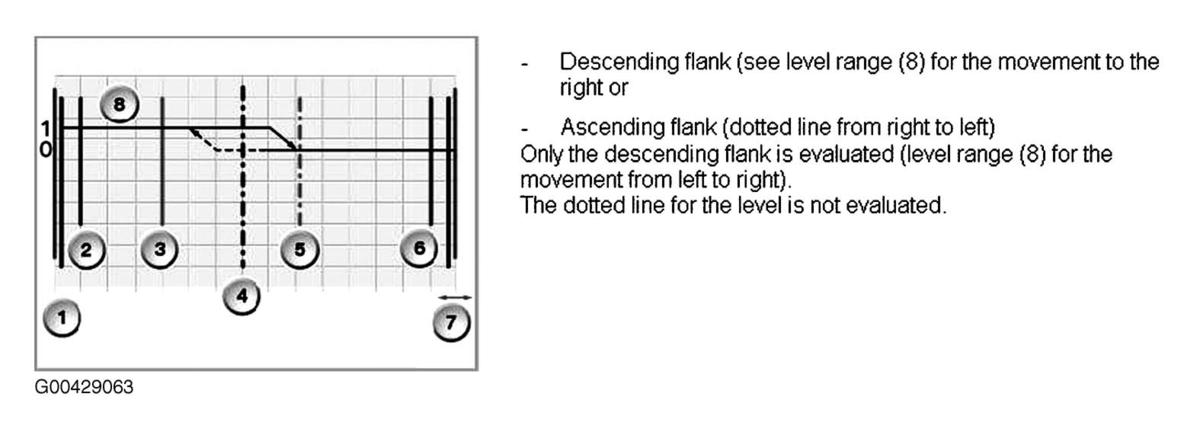

The output signal is either a high level signal or a low level signal. The level curve is illustrated in the following graphic:
LEVEL CHANGE BETWEEN HIGH AND LOW LEGEND
| Key | Explanation | Key | Explanation |
|---|---|---|---|
| 1 | Mechanical stop | 2 | Encoded end stop of range of movement |
| 3 | Parked position | 4 | Position at which a level change is expected (with a minor switching delay) |
| 5 | Straight-ahead position = 0° | 6 | Encoded end stop of range of movement |
| 7 | Mechanical stop | 8 | Level curve of the zero-position sensor (Hall sensor): |
