E46 - Headlights: Layout
WARNING: This page does not describe the selected car, but rather 37 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, 2005 BMW 330xi, and 2005 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.

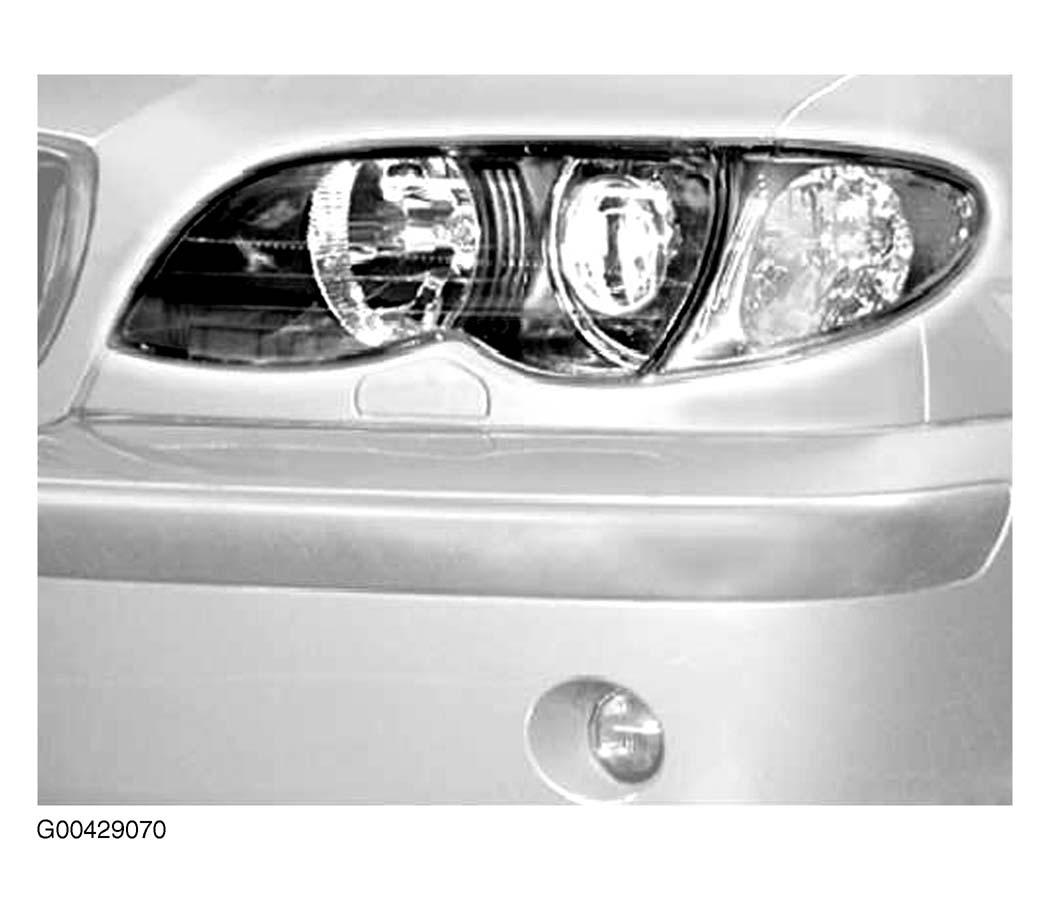

The basic version consists of double circular headlights with halogen bulbs.
There is no automatic headlight-range adjustment on vehicles with double circular headlights and halogen bulbs.
The headlight range of the dipped beam is set manually using a thumbwheel on the light switch cluster.
NOTE:
No manual headlight-range adjustment in USA Automatic headlight-range adjustment is a legal requirement in the USA.
The following options are available:
- European version: bi-xenon headlights with automatic headlight-range adjustment
- In Europe and the USA: bi-xenon headlights with adaptive headlights (including automatic headlight-range adjustment)
The headlights on vehicles with "bi-xenon dipped/main beam headlights" option 522 consist of a double circular headlight with bi-xenon light and halogen bulb (in the main beam headlight only).
