E46 - Bi-Xenon Headlights: Layout
WARNING: This page does not describe the selected car, but rather 37 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, 2005 BMW 330xi, and 2005 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.

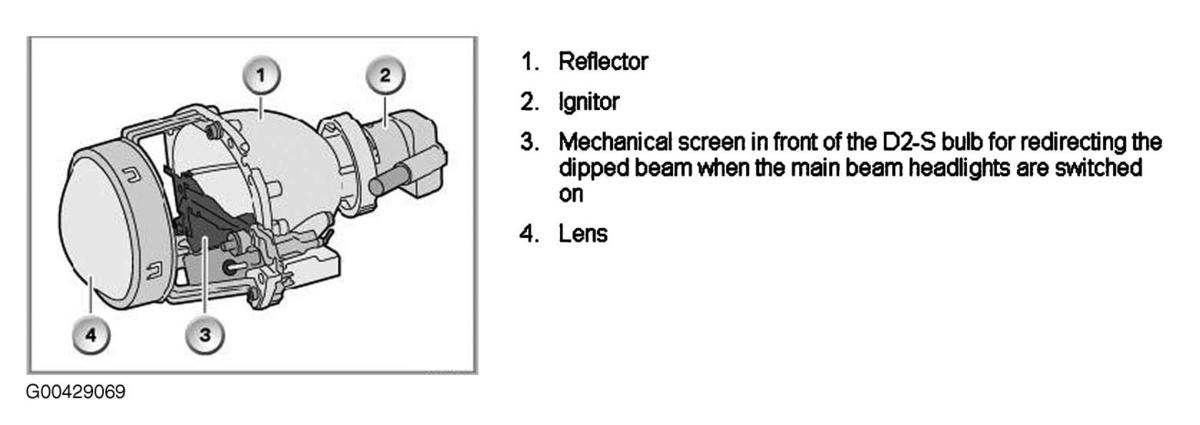

The bi-xenon headlights include the following components:
- Xenon-headlight control unit
- Ignitor and D2-S bulb
- Mechanical screen in front of the D2-S bulb for redirecting the dipped beam headlights when the main beam headlights are switched on (with a lifting magnet).
- Return spring for mechanical screen
The following bulb designations are available for bi-xenon headlights:
- D2-S bulb: bulb and ignitor are two components
- D2-R bulb (for MINI and Rover L30); bulb and ignitor are two components
- D2-S bulb: bulb and ignitor are part of ONE component (scheduled for introduction as of the E87)
- D1-R bulb currently not in
