84 11 610 Removing and installing/replacing eject box (cordless keypad handset)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

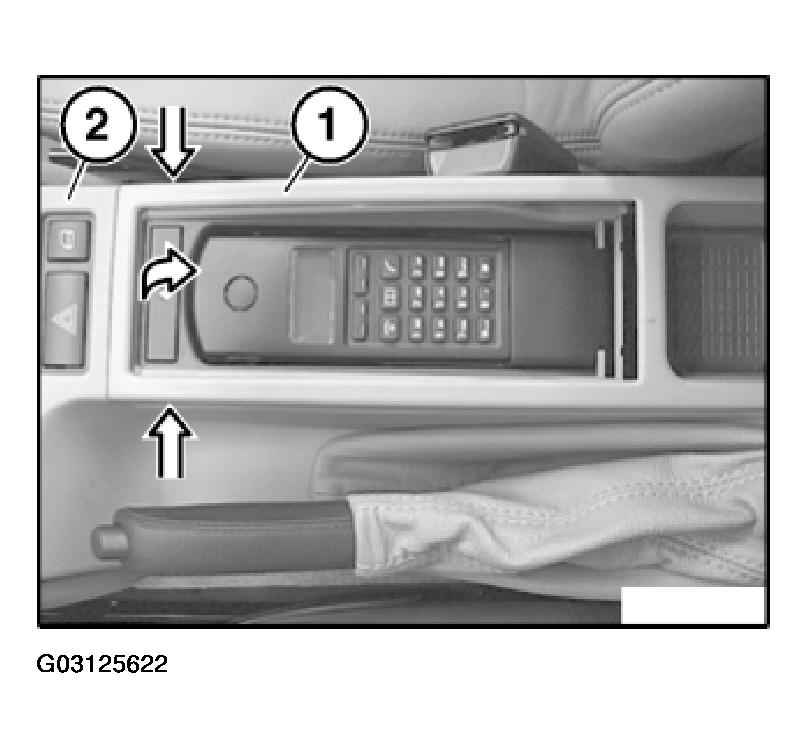

Unlock insert in storage tray (1) on both sides in direction of arrow and remove upwards from storage tray (2).

Fig 1: Storage Tray

Courtesy of BMW OF NORTH AMERICA, INC.

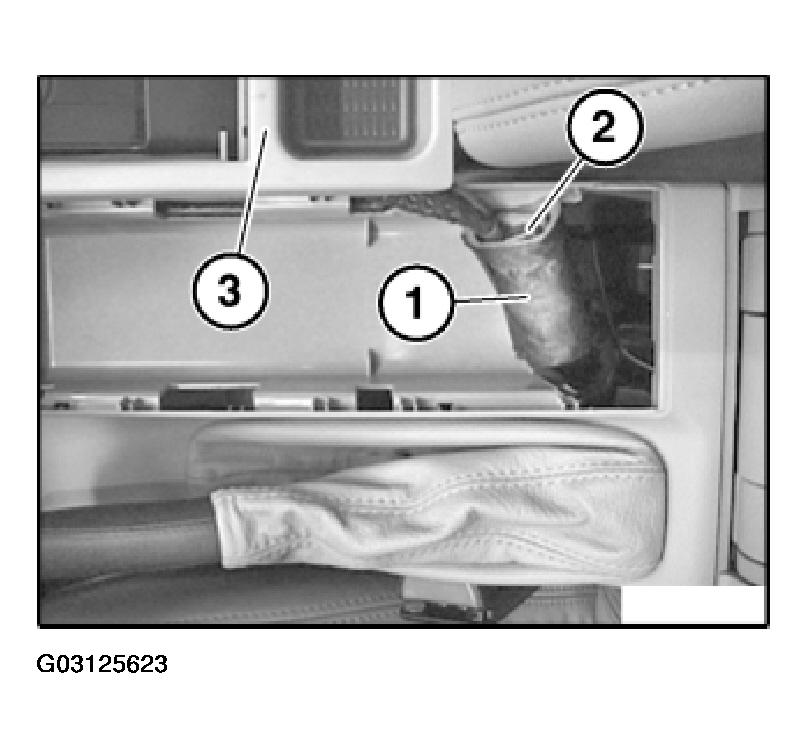

Push foam insulation (1) back a little and disconnect plug connection (2).

Remove insert in storage tray (3).

Fig 2: Storage Tray

Courtesy of BMW OF NORTH AMERICA, INC.

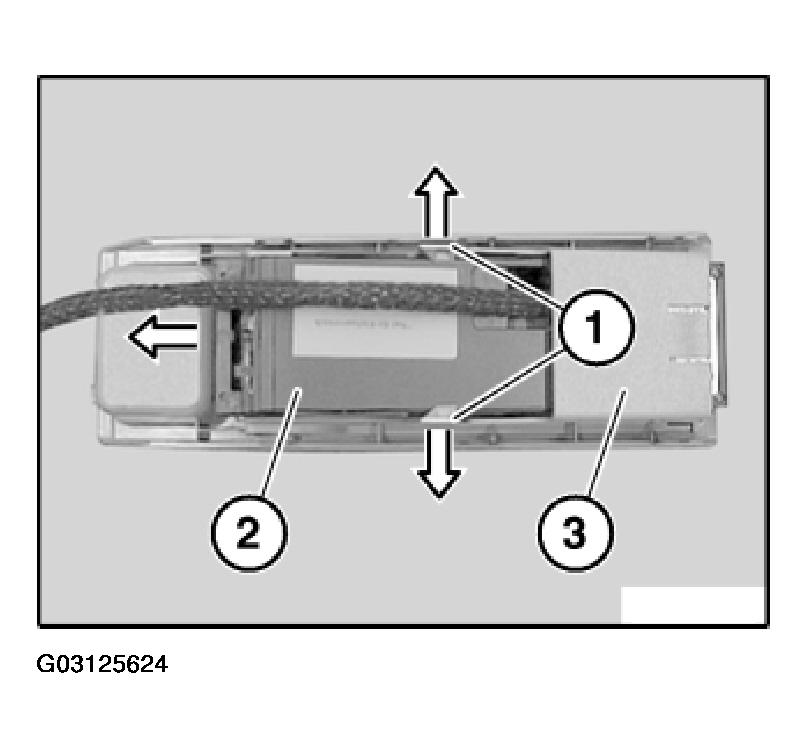

Unlock retainer (1) on both sides and remove eject box (2) in direction of arrow from insert in storage tray (3).

Fig 3: Storage Tray Unlock Retainer

Courtesy of BMW OF NORTH AMERICA, INC.
