84 11 550 Removing and installing/replacing hands-free microphone

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 020

Model without slide/tilt sunroof:

Lever out microphone trim (1) with special tool 64 1 020 in direction of arrow and remove.

Disconnect plug connection underneath.

Fig 1: Removing Microphone Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Unclip hands-free microphone (1) and remove from microphone trim (2).

Installation:

Arrow (3) of hands-free microphone (1) and arrow (4) of microphone trim (2) point in driving direction.

Fig 2: Hands-Free Microphone Trim Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Version with slide/tilt sunroof:

Lever out microphone trim (1) with special tool 64 1 020 in direction of arrow and remove.

Disconnect plug connection underneath.

Fig 3: Removing Microphone Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Unlock detent lug (1) and feed out hands-free microphone (2) in direction of arrow.

Installation:

Arrow on hands-free microphone (2) points in driving direction.

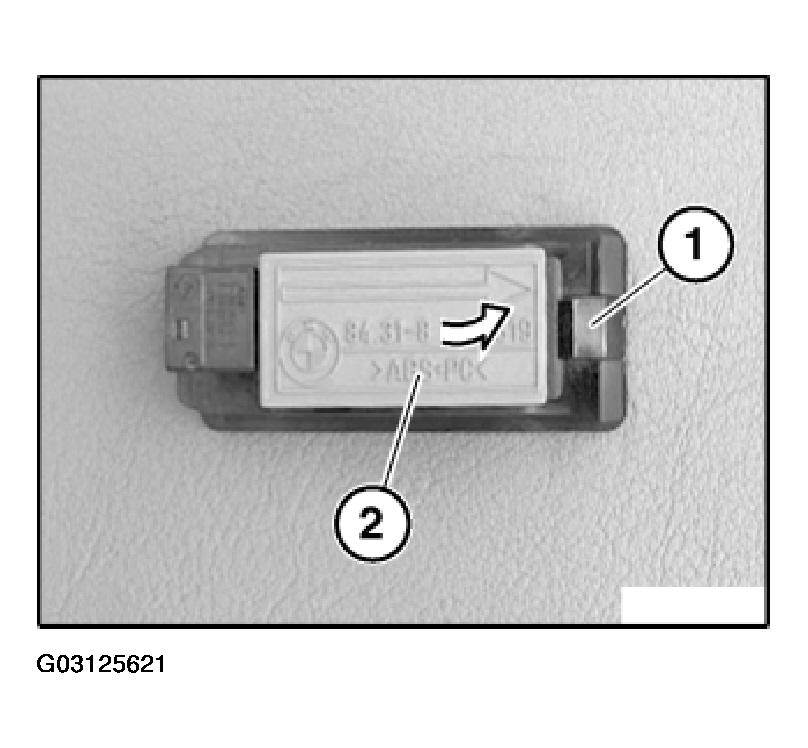

Fig 4: Hands-Free Microphone

Courtesy of BMW OF NORTH AMERICA, INC.
