84 11 530 Removing and installing/replacing interface for D-Network car phone
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
Remove and install center console. See 51 16 200 REMOVING AND INSTALLING STORAGE TRAY

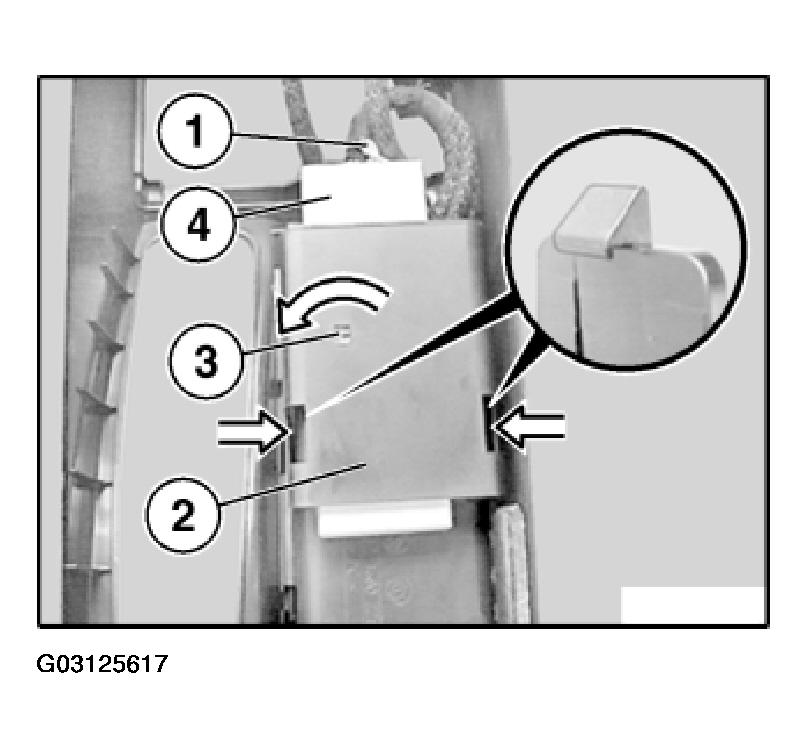

Unfasten plug connection (1). Unclip bracket (2). Remove interface (4).
Installation:
- Ensure guide (3) is correctly seated.
