84 31 020 Removing and installing/replacing hands-free system speaker

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for pedal assembly. See 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY

Disconnect plug connection (1).

Screw off threaded ring for speaker (2) in direction of arrow and remove hands-free system speaker (3) towards bottom.

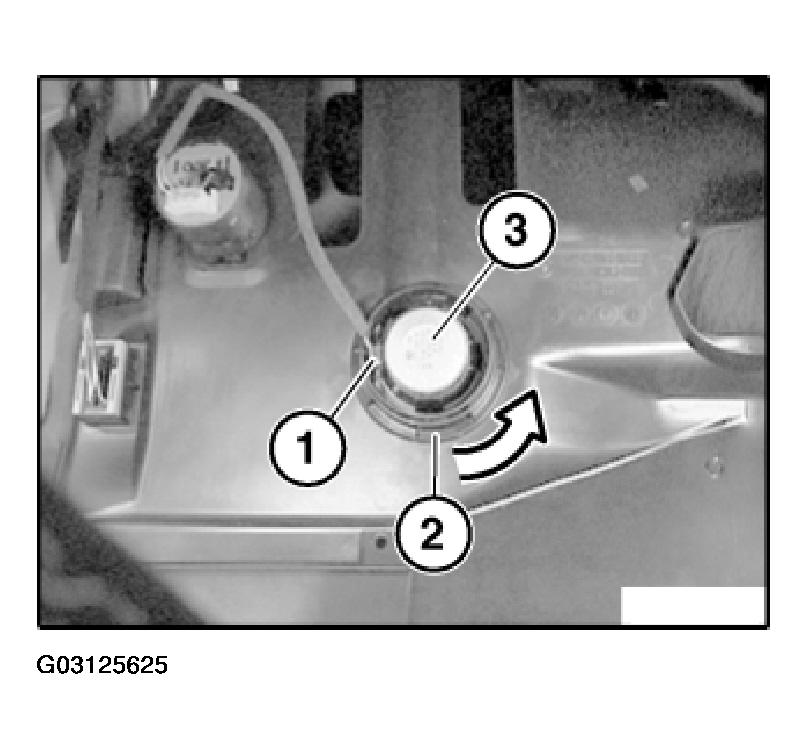

Fig 1: Removing Hands-Free System Speaker

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure hands-free system speaker (1) is correctly positioned in panel for pedal assembly.

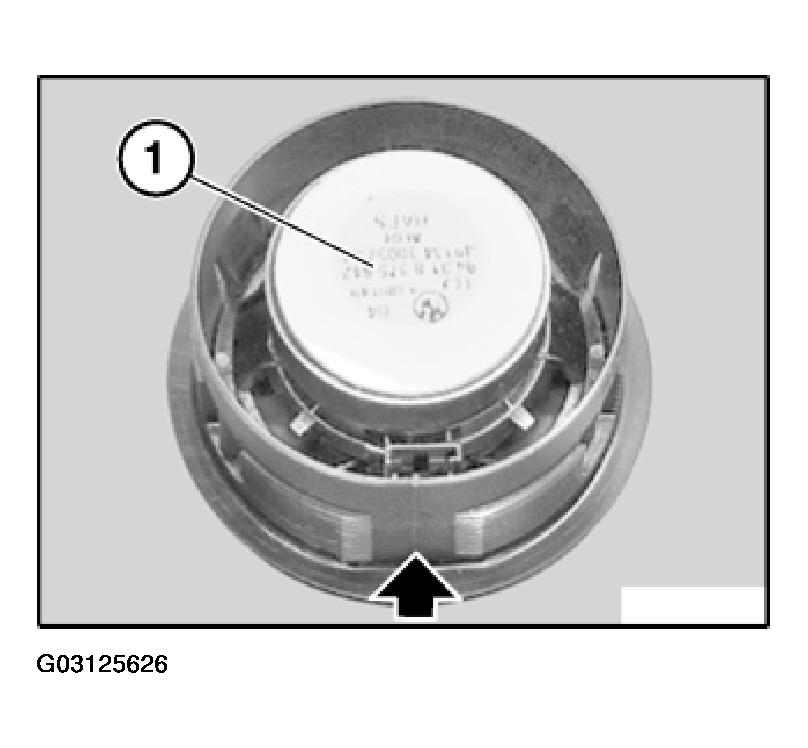

Fig 2: Hands-Free System Speaker

Courtesy of BMW OF NORTH AMERICA, INC.
