64 11 942 Replacing evaporator temperature sensor
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
Remove trim panel for pedal assembly. See 51 45 030 REMOVING AND INSTALLING INSTRUMENT PANEL TRIM

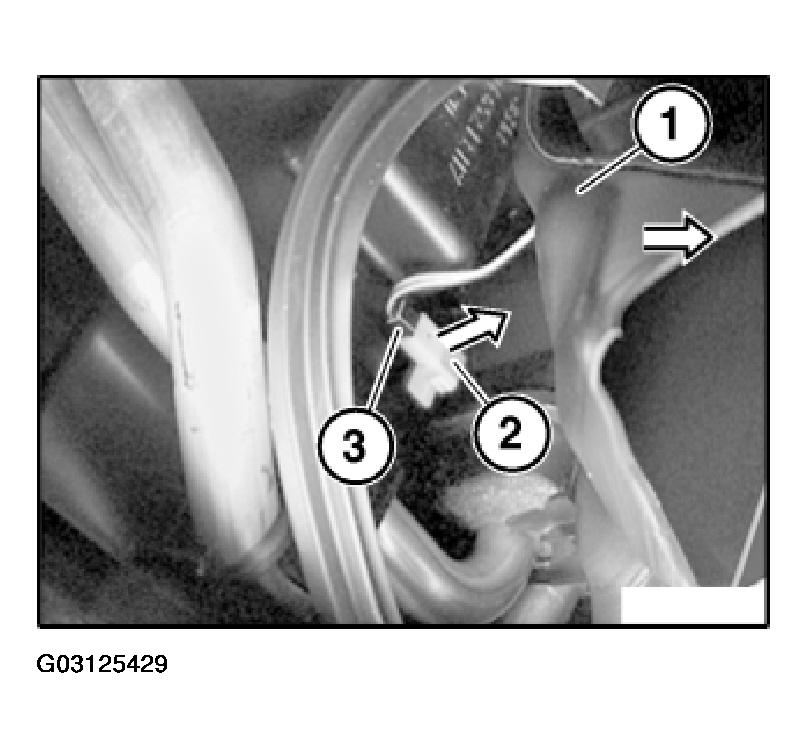

Press back heating duct for left footwell (1) in direction of arrow.
Lever out evaporator temperature sensor (2) in direction of arrow and remove.
Disconnect plug connection (3) and remove evaporator temperature sensor (2).
Installation:
Ensure evaporator temperature sensor (2) is correctly seated.
